6GC10-16x16 Couplamatic Grip Crimp 6GC Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 1" Hose ID - G-1-11 Thread Size - 1" BSPP size

6GC10-16x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x G-1-11 Thread Size | 1" BSPP Size Female Swivel | Straight | Trivalent Zinc Plating

Save $20.98 Save $20.98
$52.45
$52.45 - $52.45
$52.45
$31.47
$31.47 - $31.47
$31.47

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - BSPP - British Standard Parallel 60° Cone - Female Swivel
Specifications for Variant SKU: 6GC10-16x16 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 1in Female BSPP, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • G. as part of thread size is ISO designation for parallel thread.
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

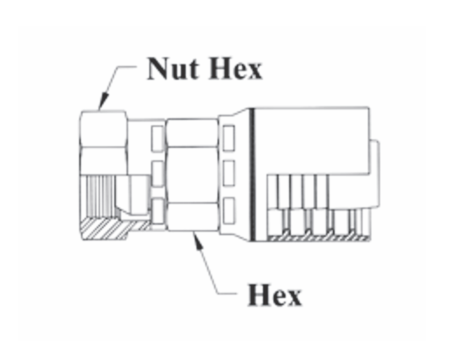

    Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex
    6GC10-10x10 5/8" 5/8" G-5/8-14 15/16" 1-3/16"
    6GC10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4"
    6GC10-16x16 1" 1" G-1-11 1-3/8" 1-1/2"
