6GC30-16x16 Couplamatic Grip Crimp 6GC Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1" Hose ID - 1-7/16x12 Thread Size

6GC30-16x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x 1-7/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating

Save $21.29 Save $21.29
$53.22
$53.22 - $53.22
$53.22
$31.93
$31.93 - $31.93
$31.93

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - O-Ring Face Seal (ORF) - Female Swivel
Specifications for Variant SKU: 6GC30-16x16 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

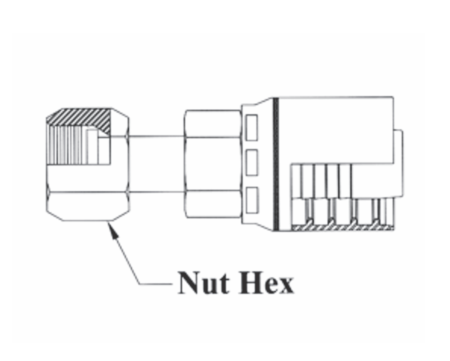

    Part Number Hose ID Tube Size Thread Size Nut Hex Cross Reference Part Numbers
    Parker 78 Parker 79
    6GC30-10x10 5/8" 5/8" 1x4 1-1/8" -
    6GC30-12x12 3/4" 3/4" 1-3/16x12 1-3/8" 1JS78-12-12 1JS79-12-12
    6GC30-12x16 3/4" 1" 1-7/16x12 1-5/8" -
    6GC30-16x16 1" 1" 1-7/16x12 1-5/8" 1JS78-16-16 1JS79-16-16
    6GC30-20x20 1-1/4" 1-1/4" 1-11/16x12 1-7/8" 1JS78-20-20 1JS79-20-20
    6GC30-24x24 1-1/2" 1-1/2" 2x12 2-1/4" -

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
