6GC32-12x12 Couplamatic Grip Crimp 6GC Series Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel - 3/4" Hose ID - 1-3/16x12 Thread Size

6GC32-12x12 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x 1-3/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel | 90° Elbow | Trivalent Zinc Plating

Save $28.29 Save $28.29
$70.73
$70.73 - $70.73
$70.73
$42.44
$42.44 - $42.44
$42.44

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel
Specifications for Variant SKU: 6GC32-12x12 Couplamatic
Series: 6GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
6GC Series — 4SH / R13 / R15 No-Skive

6GC32 Grip Crimp 6GC Series Coupling — O-Ring Face Seal (ORF), Female Swivel, 90° Elbow

6GC32 is the O-Ring Face Seal (ORF), Female Swivel, 90° Elbow configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.

1

What are the main product features?
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates six spiral hose without stripping the cover.
  • Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2

Which sizes are available?

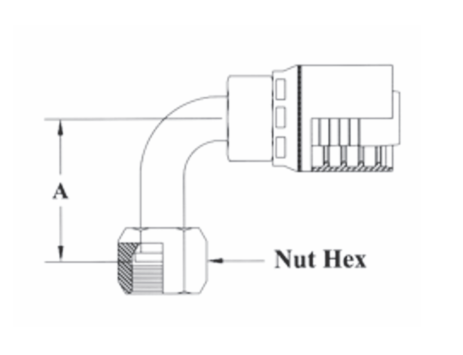

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex Cross Reference Part Numbers
Parker 78 Parker 79
6GC32-10x10 5/8" 5/8" 1x14 1.50" 1-1/8" — —
6GC32-12x12 3/4" 3/4" 1-3/16x12 2.00" 1-3/8" 1J978-12-12 1J979-12-12
6GC32-12x16 3/4" 1" 1-7/16x12 2.50" 1-5/8" — —
6GC32-16x16 1" 1" 1-7/16x12 2.50" 1-5/8" 1J978-16-16 1J979-16-16
6GC32-20x20 1-1/4" 1-1/4" 1-11/16x12 2.80" 1-7/8" 1J978-20-20 1J979-20-20
3

Which hose does this coupling terminate?
  • 100R13 Spiral Hose (RC13 & DHEXR13) 3/4" thru 2"
  • 100R15 Spiral Hose (RC15) 3/4" thru 1-1/2"
  • 4SH Spiral Hose 5/8", 3/4", and 1"
i
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully. The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
