6GC38-10x20 Couplamatic Grip Crimp 6GC Series Coupling - DIN Heavy 24° Seat - Female Swivel - 5/8" Hose ID - M30x2.0 Thread Size

6GC38-10x20 by Couplamatic | Grip Crimp 6GC Series Coupling | 5/8" Hose ID x M30x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $12.47 Save $12.47
$31.17
$31.17 - $31.17
$31.17
$18.70
$18.70 - $18.70
$18.70

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - DIN Heavy 24° Seat - Female Swivel
Specifications for Variant SKU: 6GC38-10x20 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: S20 Female DIN, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • Includes O-Ring
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

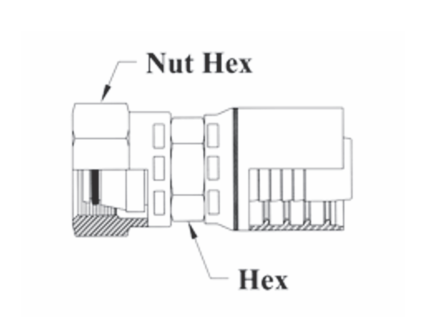

    Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex
    6GC38-10x20 5/8" 20mm M30x2.0 1-1/8" 1-1/2"
    6GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8"
    6GC38-16x30 1" 30mm M42x2.0 1-11-16" 2"
