6GC38-16x30 Couplamatic Grip Crimp 6GC Series Coupling - DIN Heavy 24° Seat - Female Swivel - 1" Hose ID - M42x2.0 Thread Size

6GC38-16x30 by Couplamatic | Grip Crimp 6GC Series Coupling | 1" Hose ID x M42x2.0 Thread Size DIN Heavy 24° Seat Female Swivel | Straight | Trivalent Zinc Plating

Save $28.46 Save $28.46
$71.15
$71.15 - $71.15
$71.15
$42.69
$42.69 - $42.69
$42.69

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - DIN Heavy 24° Seat - Female Swivel
Specifications for Variant SKU: 6GC38-16x30 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: S30 Female DIN, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
6GC Series — 4SH / R13 / R15 No-Skive

6GC38 Grip Crimp 6GC Series Coupling — DIN Heavy 24° Seat, Female Swivel, Straight

6GC38 is the DIN Heavy 24° Seat, Female Swivel, Straight configuration of the Grip Crimp 6GC Series, terminating 4SH, SAE 100R13 and SAE 100R15 six spiral hose.

1

What are the main product features?
  • Includes O-Ring
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • No skive required — terminates six spiral hose without stripping the cover.
  • Six spiral construction — for the highest pressure 4SH, R13 and R15 hose.
2

Which sizes are available?

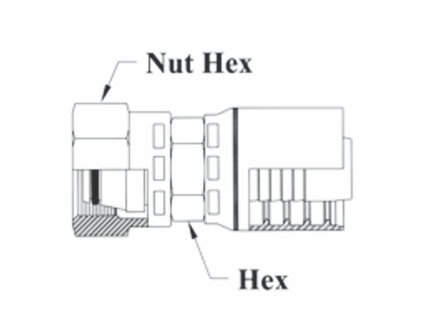

Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex
6GC38-10x20 5/8" 20mm M30x2.0 1-1/8" 1-1/2"
6GC38-12x25 3/4" 25mm M36x2.0 1-3/8" 1-7/8"
6GC38-16x30 1" 30mm M42x2.0 1-11-16" 2"
