6GC53-12x12 Couplamatic Grip Crimp 6GC Series Coupling - Code 61 Split Flange - 90° Bend - 3/4" Hose ID - 3/4" Flange Size

6GC53-12x12 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x 3/4" Split Flange Size | Code 61 | 90° Elbow | Trivalent Zinc Plating

Save $27.08

$67.70

$67.70 - $67.70

$67.70

$40.62

$40.62 - $40.62

$40.62

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 61 Split Flange - 90° Bend

Specifications for Variant SKU: 6GC53-12x12 Couplamatic
Series:	6GC Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/4in Code 61 Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	RC13 Series \| DHEXR13 Series \| RC15 Series \| 4SH Series

Description:
The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully. Trivalent Zinc Plating

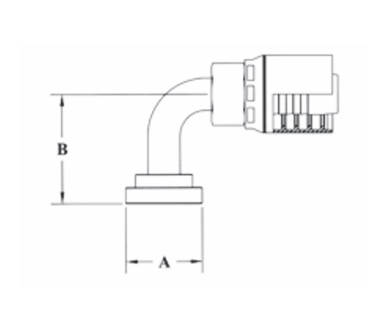

Part Number	Hose ID	Flange Size	A-DiaInches	B-DropInches	Cross Reference Part Numbers
Part Number	Hose ID	Flange Size	A-DiaInches	B-DropInches	Parker 78
6GC53-12x12	3/4"	3/4"	1.50"	2.38"	11978-12-12
6GC53-12x16	3/4"	1"	1.75"	2.75"	-
6GC53-16x16	1"	1"	1.75"	2.75"	11978-16-16
6GC53-16x20	1"	1-1/4"	2.00"	2.88"	-
6GC53-20x20	1-1/4"	1-1/4"	2.00"	2.88"	14N78-20-20
6GC53-24x24	1-1/2"	1-1/2"	2.38"	4.00"	14N78-24-24
6GC53-32x32	2"	2"	2.81"	5.40"	14NS6-32-32

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
