6GC54-12x16 Couplamatic Grip Crimp 6GC Series Coupling - Code 61 Split Flange - 90° Bend Long Drop - 3/4" Hose ID - 1" Flange Size

6GC54-12x16 by Couplamatic | Grip Crimp 6GC Series Coupling | 3/4" Hose ID x 1" Split Flange Size | Code 61 | 90° Long Elbow | Trivalent Zinc Plating

Save $8.35 Save $8.35
$75.14
$75.14 - $75.14
$75.14
$66.79
$66.79 - $66.79
$66.79

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 61 Split Flange - 90° Bend Long Drop
Specifications for Variant SKU: 6GC54-12x16 Couplamatic
Series: 6GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Code 61 Flange, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

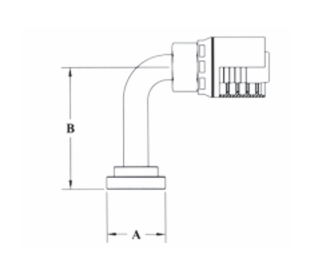

    Part Number Hose ID Flange Size A-DiaInches B-DropInches
    6GC54-12x12 3/4" 3/4" 1.50" 5.25"
    6GC54-12x16 3/4" 1" 1.75" 6.00"
    6GC54-16x16 1" 1" 1.75" 6.00"
    6GC54-16x20 1" 1-1/4" 2.00" 7.50"
    6GC54-20x20 1-1/4" 1-1/4" 2.00" 7.50"
