6GC54-20x20 Couplamatic Grip Crimp 6GC Series Coupling - Code 61 Split Flange - 90° Bend Long Drop - 1-1/4" Hose ID - 1-1/4" Flange Size

6GC54-20x20 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 61 | 90° Long Elbow | Trivalent Zinc Plating

Save $12.96 Save $12.96
$116.62
$116.62 - $116.62
$116.62
$103.66
$103.66 - $103.66
$103.66

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 61 Split Flange - 90° Bend Long Drop
Specifications for Variant SKU: 6GC54-20x20 Couplamatic
Series: 6GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 61 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

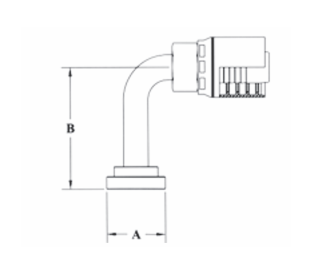

    Part Number Hose ID Flange Size A-DiaInches B-DropInches
    6GC54-12x12 3/4" 3/4" 1.50" 5.25"
    6GC54-12x16 3/4" 1" 1.75" 6.00"
    6GC54-16x16 1" 1" 1.75" 6.00"
    6GC54-16x20 1" 1-1/4" 2.00" 7.50"
    6GC54-20x20 1-1/4" 1-1/4" 2.00" 7.50"
    Couplamatic Systems Inc

    Couplamatic Systems Inc

    In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
