6GC60-32x32 Couplamatic Grip Crimp 6GC Series Coupling - Code 62 Split Flange - Straight - 2" Hose ID - 2 Flange Size

6GC60-32x32 by Couplamatic | Grip Crimp 6GC Series Coupling | 2" Hose ID x 2 Split Flange Size | Code 62 | Straight | Trivalent Zinc Plating

Save $78.61 Save $78.61
$196.52
$196.52 - $196.52
$196.52
$117.91
$117.91 - $117.91
$117.91

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 62 Split Flange - Straight
Specifications for Variant SKU: 6GC60-32x32 Couplamatic
Series: 6GC Series
Shape (Orientation): Straight
Ends Configuration: 2in Code 62 Flange, 2in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

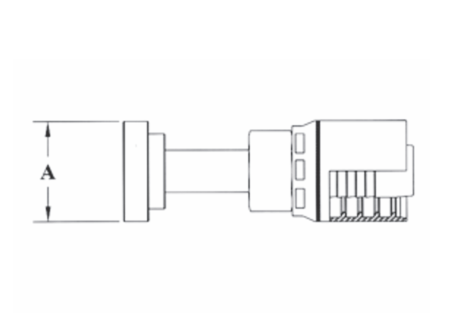

    Part Number Hose ID Flange Size A-DiaInches Cross Reference Part Numbers
    Parker 78 Parker 79
    6GC60-12x12 3/4" 3/4" 1.62" 16A78-12-12 16A79-12-12
    6GC60-12x16 3/4" 1" 1.88 16A78-16-12 16A79-16-12
    6GC60-16x16 1" 1" 1.88" 16A78-16-16 16A79-16-16
    6GC60-16x20 1" 1-1/4" 2.12" 16A78-20-16 16A79-20-16
    6GC60-20x20 1-1/4" 1-1/4" 2.12" 16A78-20-20 16A79-20-20
    6GC60-24x24 1-1/2" 1-1/2" 2.50" 16A78-24-24 16A79-24-24
    6GC60-32x32 2" 2" 3.12" 16AS6-32-32 -

    The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
