6GC63-20x20 Couplamatic Grip Crimp 6GC Series Coupling - Code 62 Split Flange - 90° Bend Long Drop - 1-1/4" Hose ID - 1-1/4" Flange Size

6GC63-20x20 by Couplamatic | Grip Crimp 6GC Series Coupling | 1-1/4" Hose ID x 1-1/4" Split Flange Size | Code 62 | 90° Long Elbow | Trivalent Zinc Plating

Save $12.96 Save $12.96
$116.61
$116.61 - $116.61
$116.61
$103.65
$103.65 - $103.65
$103.65

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Code 62 Split Flange - 90° Bend Long Drop
Specifications for Variant SKU: 6GC63-20x20 Couplamatic
Series: 6GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Code 62 Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

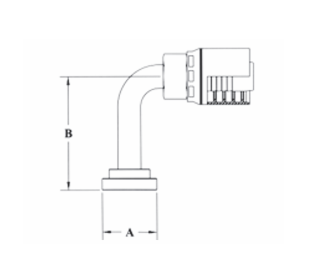

    Part Number Hose ID Flange Size A-DiaInches B-DropInches
    6GC63-12x12 3/4" 3/4" 1.62" 5.25"
    6GC63-12x16 3/4" 1" 1.88 6.00"
    6GC63-16x16 1" 1" 1.88" 6.00"
    6GC632-16x20 1" 1-1/4" 2.12" 7.50"
    6GC63-20x20 1-1/4" 1-1/4" 2.12" 7.50"
