6GC82-16x20 Couplamatic Grip Crimp 6GC Series Coupling - Extra Heavy Duty Flange - 90° Bend - 1" Hose ID - 1-1/4" Flange Size (for use on Caterpillar® Equipment)

6GC82-16x20 by Couplamatic | Grip Crimp 6GC Series Coupling | Extra Heavy Duty Flange | 1" Hose ID x 1-1/4" Flange Size | for use on Caterpillar® Equipment | 90° Elbow | Trivalent Zinc Plating

Save $10.49 Save $10.49
$94.40
$94.40 - $94.40
$94.40
$83.91
$83.91 - $83.91
$83.91

Couplamatic Systems Inc.
Grip Crimp 6GC Series - 4SH, R13, R15 No-Skive Couplings - Extra Heavy Duty Flange - 90° Bend (For use on Caterpillar® Equipment)
Specifications for Variant SKU: 6GC82-16x20 Couplamatic
Series: 6GC Series
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Caterpillar Flange, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: RC13 Series  |   DHEXR13 Series  |   RC15 Series  |   4SH Series
Description:
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully.
  • Trivalent Zinc Plating
    		•

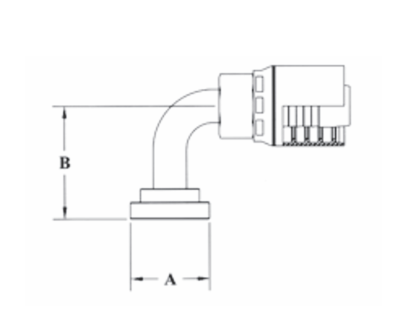

    Part Number Hose ID Flange Size A-DiaInches B-DropInches Cross Reference Part Numbers
    Parker 78 Parker 79
    6GC82-12x12 3/4" 3/4" 1.62" 2.50" 1XN78-12-12 1XN79-12-12
    6GC82-12x16 3/4" 1" 1.88" 3.00" - -
    6GC82-16x16 1" 1" 1.88" 3.00" 1XN78-16-16 1XN79-16-16
    6GC82-16x20 1" 1-1/4" 2.12" 3.38" - -
    6GC82-20x20 1-1/4" 1-1/4" 2.12" 3.38" 1XN78-20-20 1XN79-20-20
    6GC82-24x24 1-1/2" 1-1/2" 2.50" 4.00" 1XN78-24-24 1XN79-24-24
    6GC82-32x32 2" 2" 3.12" 5.50" - -
