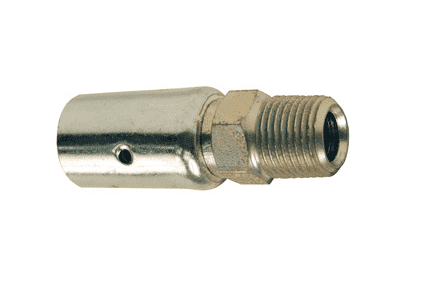

6P3 Dixon 3/8" Plated Carbon Steel External Swage Uni-Range Male Coupling - Hose OD from 54/64" to 58/64"

6P3 Dixon Valve 3/8" Plated Carbon Steel External Swage Uni-Range Male Coupling - Hose OD from 54/64" to 58/64"

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon External Swage Uni-Range Male Couplings - Plated Carbon Steel Stem and Ferrule
Specifications for Variant SKU: 6P3 Dixon
Shape (Orientation): Straight
Material(s): Plated Carbon Steel
Applications:
  • Designed for smaller hose systems, these couplings may be used for hose ID's of 1/4" - 1".
  • Can be swaged or crimped.
Features:
  • Arrives complete with factory assembled stem and ferrule combination.
  • The coupling system requires no bolts and results in a clean coupling with no protrusions.
  • The Holedall coupling provides long-lasting efficiency and safety.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system.
  • Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Externally swaged Holedall couplings, to perform satisfactorily, must be applied properly in accordance with Dixon's assembly procedures, using correct die and ferrule for that particular hose end OD.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
Hose OD
Part Number Hose ID From To Weight (Lbs.)
4P1 1/4" 34/64" 38/64" 0.1320
4P2 1/4" 38/64" 42/64" 0.1400
4P3 1/4" 42/64" 46/64" 0.1900
6P1 3/8" 46/64" 50/64" 0.2095
6P2 3/8" 50/64" 54/64" 0.2135
6P3 3/8" 54/64" 58/64" 0.2200
8P1 1/2" 54/64" 58/64" 0.3010
8P2 1/2" 58/64" 62/64" 0.3100
8P3 1/2" 62/64" 1-2/64" 0.3020
12P1 3/4" 1-10/64" 1-14/64" 0.4740
12P2 3/4" 1-14/64" 1-18/64" 0.5100
12P3 3/4" 1-18/64" 1-22/64" 0.5100
16P1 1" 1-30/64" 1-34/64" 0.9300
16P2 1" 1-34/64" 1-38/64" 0.9400
16P3 1" 1-38/64" 1-42/64" 0.9450
16P4 1" 1-42/64" 1-46/64" 0.9110
