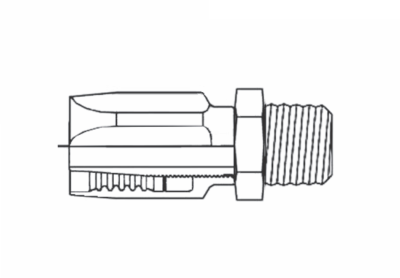

6R5-4MP Couplamatic Reusable Coupling - R5 Reusables - NPTF - Male Solid - 5/16" Hose ID - 1/4-18 Thread Size

6R5-4MP by Couplamatic | R5 Reusable Coupling | 5/16" Hose ID x 1/4-18 Thread Size Male Solid NPTF | Straight | Trivalent Zinc Plating

Save $7.81 Save $7.81
$19.52
$19.52 - $19.52
$19.52
$11.71
$11.71 - $11.71
$11.71

Couplamatic Systems Inc.
Reusable Couplings - 100R5 - R5 Reusables - NPTF - Male Solid
Specifications for Variant SKU: 6R5-4MP Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 5/16in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Hose Dash Size Pipe Size Thread Size Hose Type
    4R5-2MP 3/16" -04 1/8" 1/8-27 100R5
    4R5-4MP 3/16" -04 1/4" 1/4-18 100R5
    5R5-4MP 1/4" -05 1/4" 1/4-18 100R5
    6R5-4MP 5/16" -06 1/4" 1/4-18 100R5
    6R5-6MP 5/16" -06 3/8" 3/8-18 100R5
    8R5-6MP 13/32" -08 3/8" 3/8-18 100R5
    8R5-8MP 13/32" -08 1/2" 1/2-14 100R5
    10R5-8MP 1/2" -10 1/2" 1/2-14 100R5
    12R5-12MP 5/8" -12 3/4" 3/4-14 100R5
