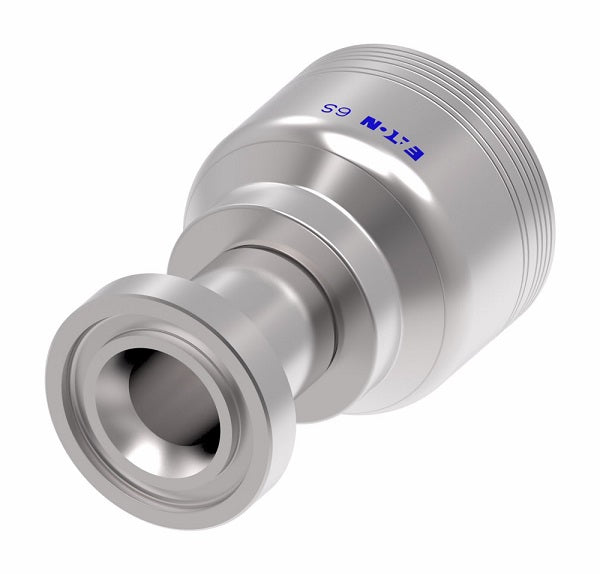

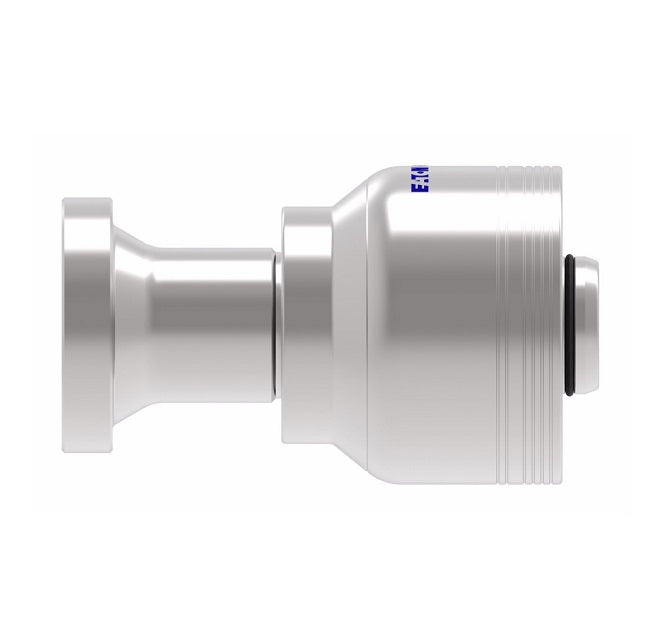

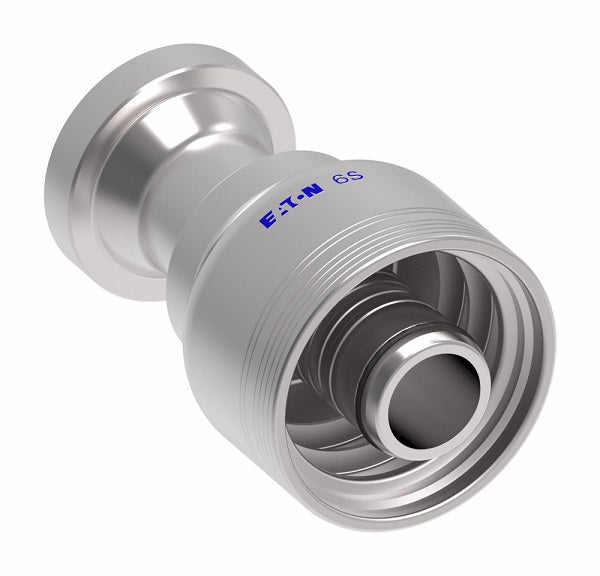

6S16FH16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

6S16FH16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

Name: 6S16FH16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S16FH16 Danfoss
Price: 86.86 USD
Availability: InStock

$86.86 - $86.86

$86.86

$86.86 - $86.86

$86.86

Aeroquip® by Danfoss
6 Wire 6S SAE Code 62 Flange Crimp Fitting (FH) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6S16FH16 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash
6S16FH16	-16	25	-16	1.88"	3.89"	2.33"	0.76"
6S20FH16	-20	25	-16	2.13"	3.97"	2.40"	0.76"
6S20FH20	-20	31	-20	2.13"	4.88"	2.68"	0.99"
6S24FH20	-24	31	-20	2.50"	5.11"	2.91"	0.99"
6S24FH24	-24	38	-24	2.50"	7.46"	4.39"	1.22"
6S32FH24	-32	38	-24	3.13"	8.05"	4.98"	1.22"
6S32FH32	-32	51	-32	3.13"	7.98"	4.91"	1.66"
