6S16FHA16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel

6S16FHA16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange 45° Elbow (FHA) Crimp Fitting | -16 Code 62 Flange x -16 Hose Barb | Steel | Pack of 10

$1,116.60 - $1,116.60

$1,116.60

$1,116.60 - $1,116.60

$1,116.60

Aeroquip® by Danfoss

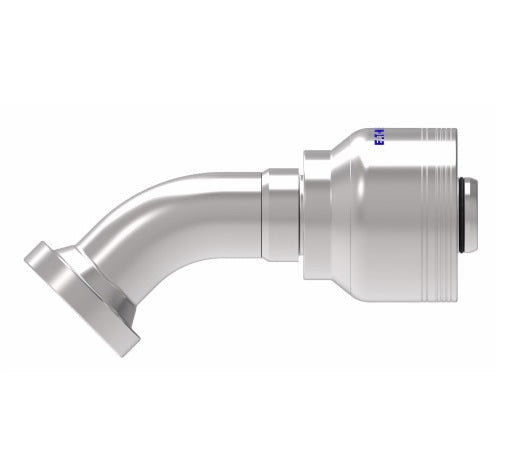

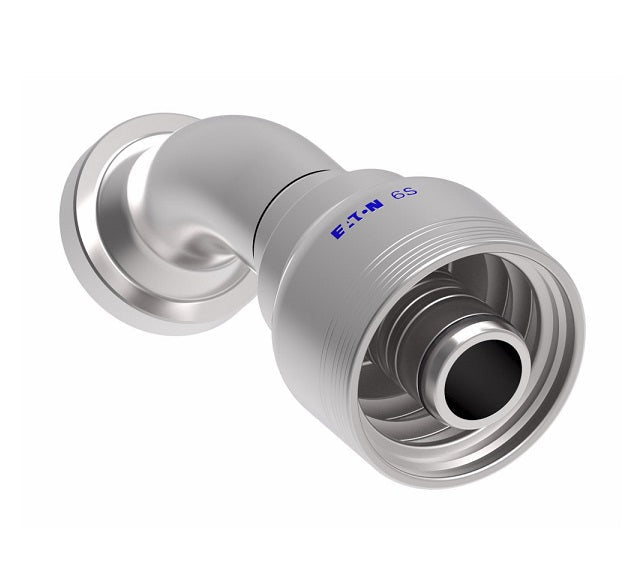

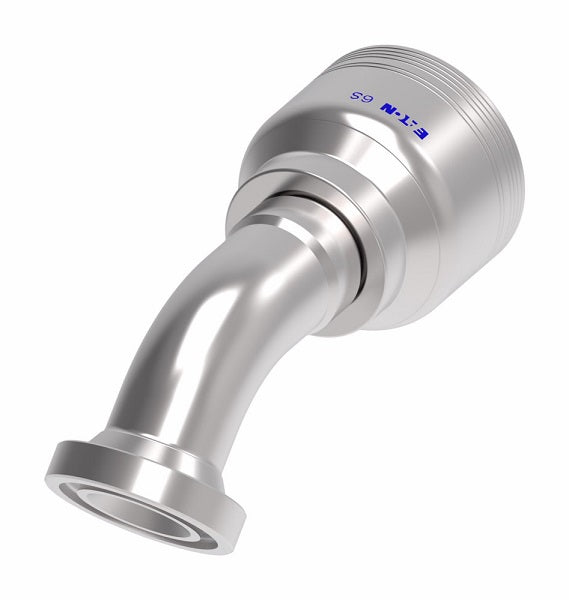

6 Wire 6S SAE Code 62 Flange Crimp Fitting (FHA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 6S16FHA16 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1in Code 62 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16FHA16	-16	25	-16	1.88"	5.15"	3.59"	0.76"	1.26"
6S20FHA16	-20	25	-16	2.13"	5.91"	4.35"	0.75"	1.54"
6S20FHA20	-20	31	-20	2.13"	6.60"	4.39"	0.99"	1.54"
6S24FHA20	-24	31	-20	2.50"	7.25"	5.05"	0.99"	1.77"
6S24FHA24	-24	38	-24	2.50"	8.43"	5.36"	1.22"	1.77"
6S32FHA24	-32	38	-24	3.13"	9.88"	6.81"	1.22"	2.26"
6S32FHA32	-32	51	-32	3.13"	10.00"	6.93"	1.66"	2.26"
