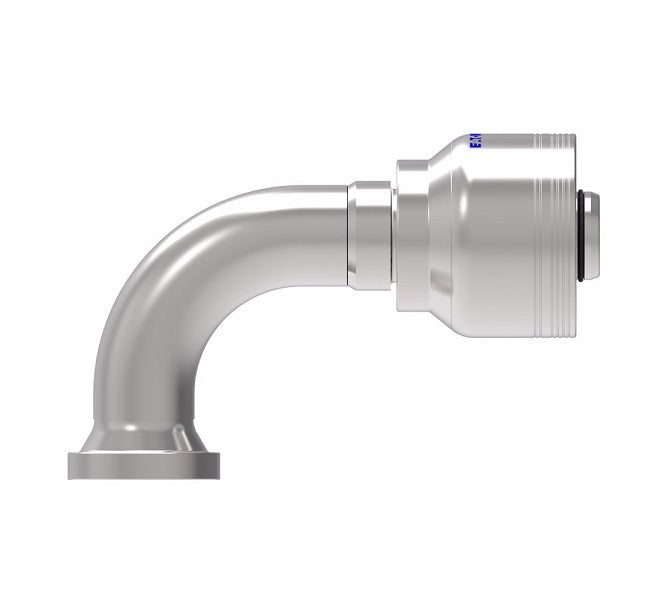

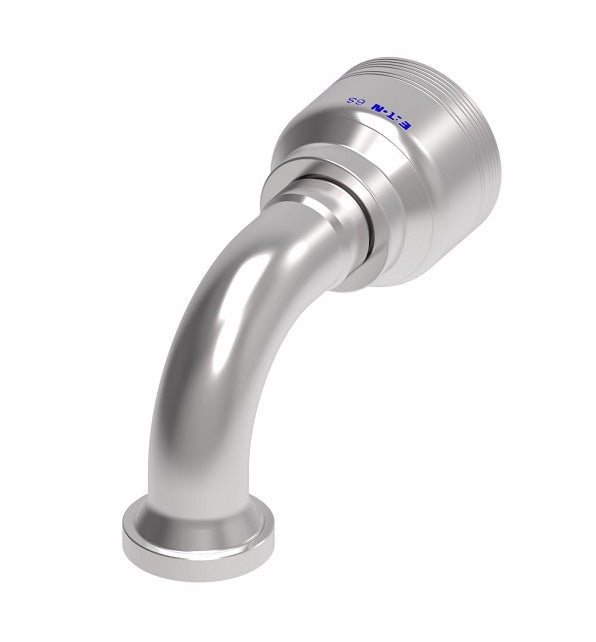

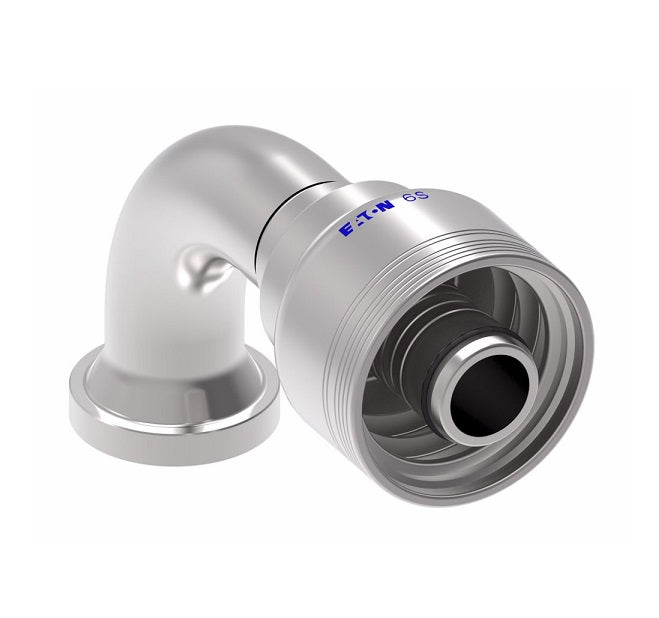

6S16FLB16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel

6S16FLB16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel

Name: 6S16FLB16 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -16 Code 61 Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S16FLB16 Danfoss
Price: 104.93 USD
Availability: InStock

$104.93 - $104.93

$104.93

$104.93 - $104.93

$104.93

Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FLB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S16FLB16 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606-16 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16FLB16	-16	25	-16	1.75"	4.96"	3.39"	0.76"	2.80"
6S20FLB16	-20	25	-16	2.00"	5.72"	4.15"	0.76"	3.50"
6S20FLB20	-20	31	-20	2.00"	6.40"	4.19"	0.99"	3.50"
6S24FLB24	-24	38	-24	2.37"	8.22"	5.15"	1.22"	4.09"
6S32FLB24	-32	38	-24	2.81"	9.74"	6.67"	1.22"	5.43"
6S32FLB32	-32	51	-32	2.81"	9.85"	6.78"	1.66"	5.43"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
