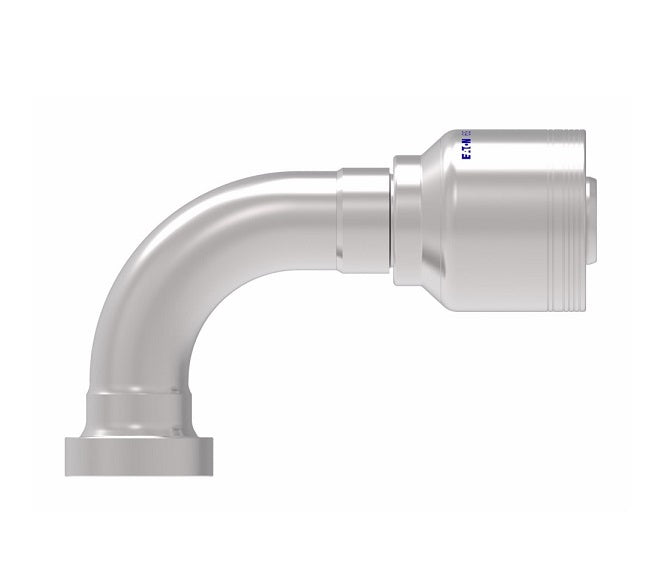

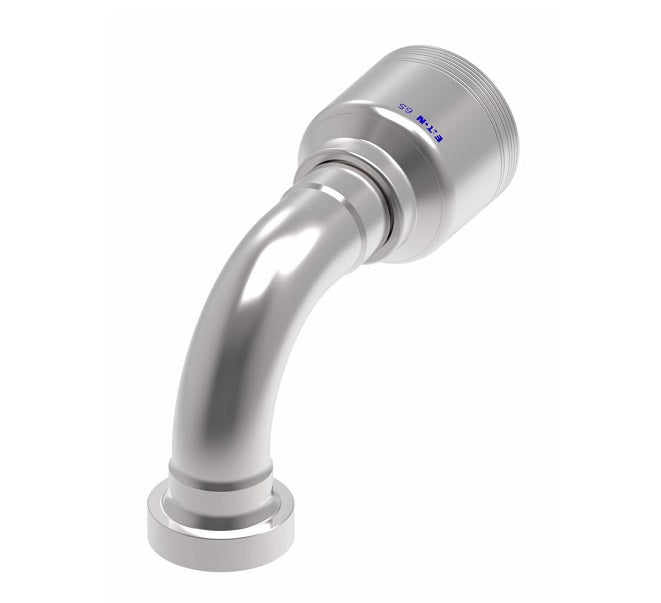

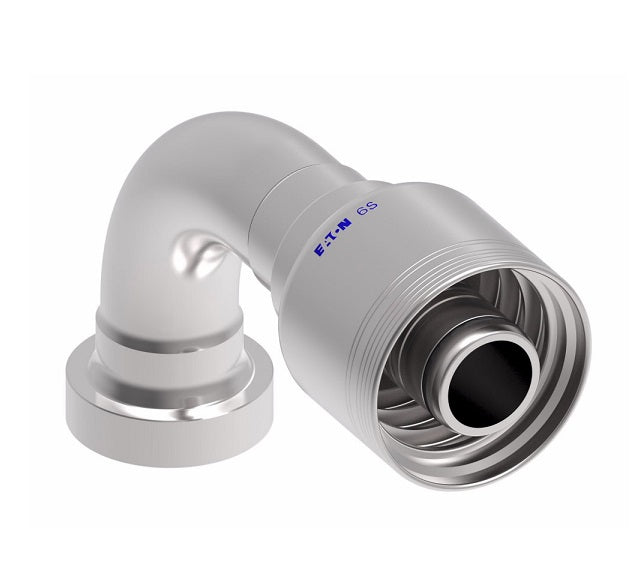

6S20CTB20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 90° Elbow (CTB) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel

6S20CTB20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 90° Elbow (CTB) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel

Name: 6S20CTB20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 90° Elbow (CTB) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S20CTB20 Danfoss
Price: 174.49 USD
Availability: InStock

$174.49 - $174.49

$174.49

$174.49 - $174.49

$174.49

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S20CTB20 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/4in CAT Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16CTB16	-16	25	-16	1.87"	4.96"	3.39"	0.76"	2.98"
6S20CTB16	-20	25	-16	2.13"	5.72"	4.15"	0.76"	3.66"
6S20CTB20	-20	31	-20	2.13"	6.40"	4.19"	0.99"	3.66"
6S24CTB20	-24	31	-20	2.50"	7.05"	4.84"	0.99"	4.16"
6S24CTB24	-24	38	-24	2.50"	8.22"	5.15"	1.22"	4.16"
6S32CTB24	-32	38	-24	3.13"	9.74"	6.67"	1.22"	5.50"
6S32CTB32	-32	51	-32	3.13"	9.85"	6.78"	1.66"	5.50"
