6S20CTD16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

6S20CTD16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel

Name: 6S20CTD16 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -20 CAT Flange x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S20CTD16 Danfoss
Price: 170.54 USD
Availability: InStock

$170.54 - $170.54

$170.54

$170.54 - $170.54

$170.54

Aeroquip® by Danfoss

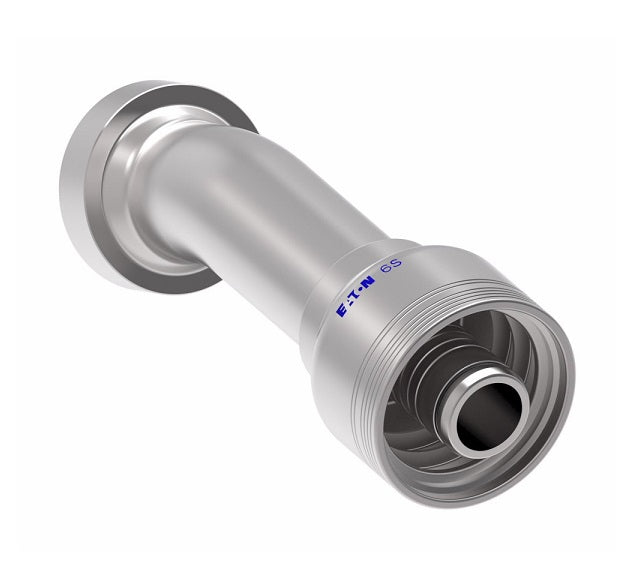

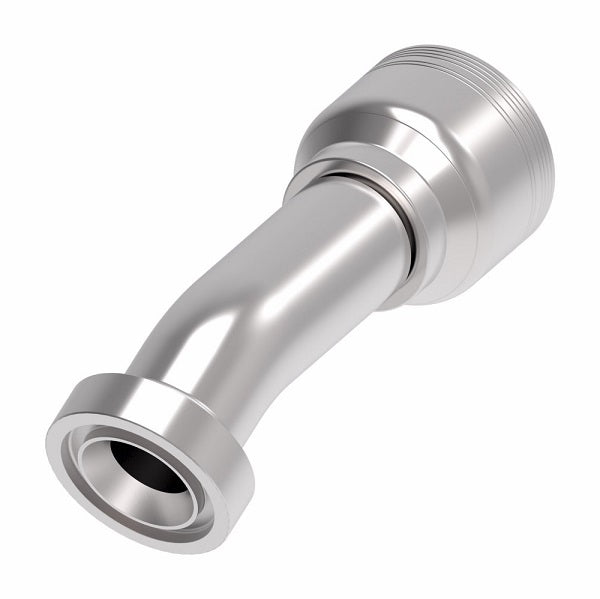

6 Wire 6S CAT Flange Crimp Fitting (CTD) - 22.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6S20CTD16 Danfoss
Shape (Orientation):	22.5 Degree
Ends Configuration:	1-1/4in CAT Flange, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16CTD16	-16	25	-16	1.87"	5.68"	4.11"	0.76"	0.60"
6S20CTD16	-20	25	-16	2.13"	6.48"	4.91"	0.76"	0.70"
6S20CTD20	-20	31	-20	2.13"	7.16"	4.96"	0.99"	0.70"
6S24CTD20	-24	31	-20	2.50"	7.80"	5.59"	0.99"	0.76"
6S24CTD24	-24	38	-24	2.50"	8.97"	5.90"	1.22"	0.76"
6S32CTD32	-32	51	-32	3.13"	10.67"	7.60"	1.66"	0.95"
