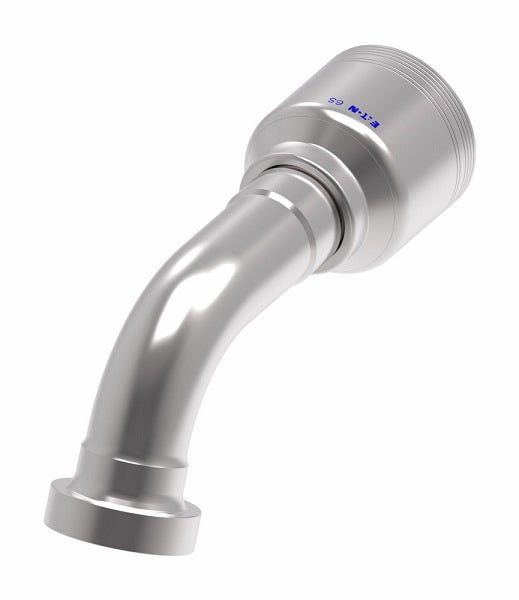

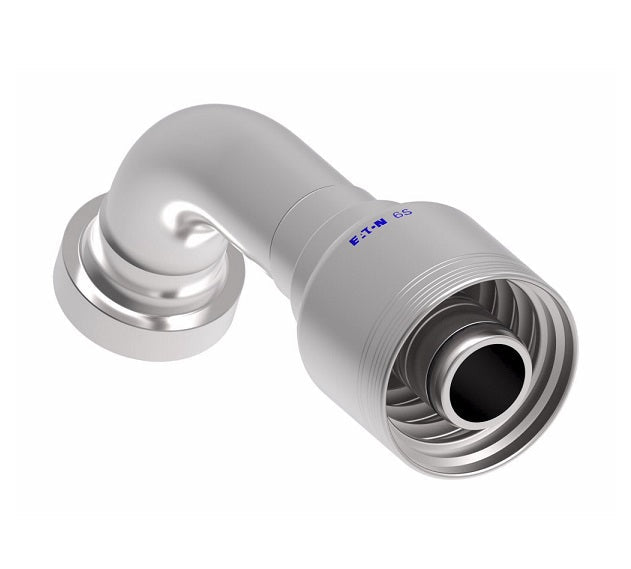

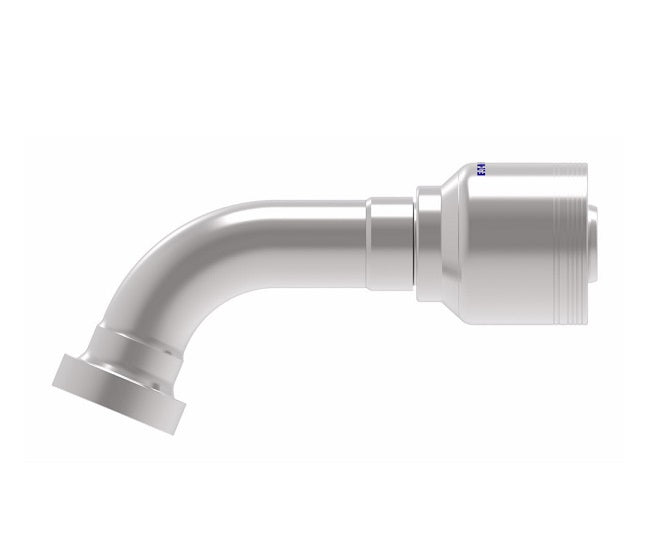

6S20CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel

6S20CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel

Name: 6S20CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -20 CAT Flange x -20 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S20CTE20 Danfoss
Price: 192.85 USD
Availability: InStock

$192.85 - $192.85

$192.85

$192.85 - $192.85

$192.85

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTE) - 67.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S20CTE20 Danfoss
Shape (Orientation):	67.5 Degree
Ends Configuration:	1-1/4in CAT Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16CTE16	-16	25	-16	1.87"	5.98"	4.42"	0.76"	2.20"
6S20CTE16	-20	25	-16	2.13"	6.96"	5.40"	0.76"	2.68"
6S20CTE20	-20	31	-20	2.13"	7.65"	5.44"	0.99"	2.68"
6S24CTE20	-24	31	-20	2.50"	8.46"	6.26"	0.99"	3.02"
6S24CTE24	-24	38	-24	2.50"	9.64"	6.57"	1.22"	3.02"
6S32CTE32	-32	51	-32	3.13"	11.72"	8.65"	1.66"	3.97"
