6S24BF24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel
6S24BF24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel
6S24BF24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel

6S24BF24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP Swivel 60° Cone Seat (BF) Crimp Fitting | -24 Female BSPP Swivel x -24 Hose Barb | Steel

$176.82 - $176.82
$176.82
$176.82 - $176.82
$176.82

Aeroquip® by Danfoss

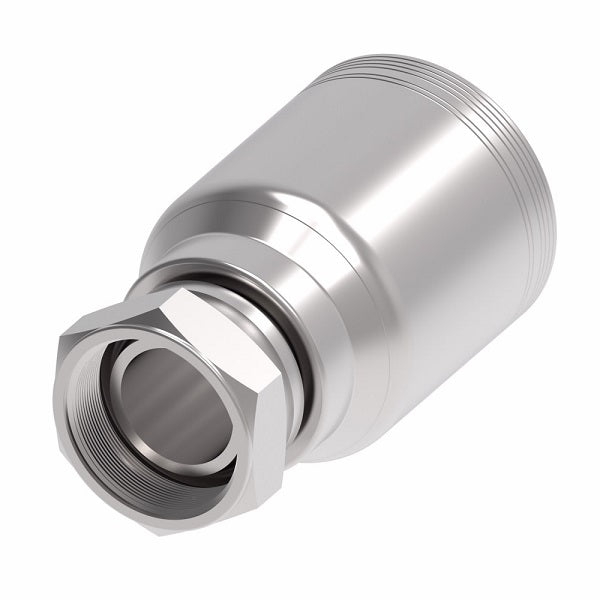

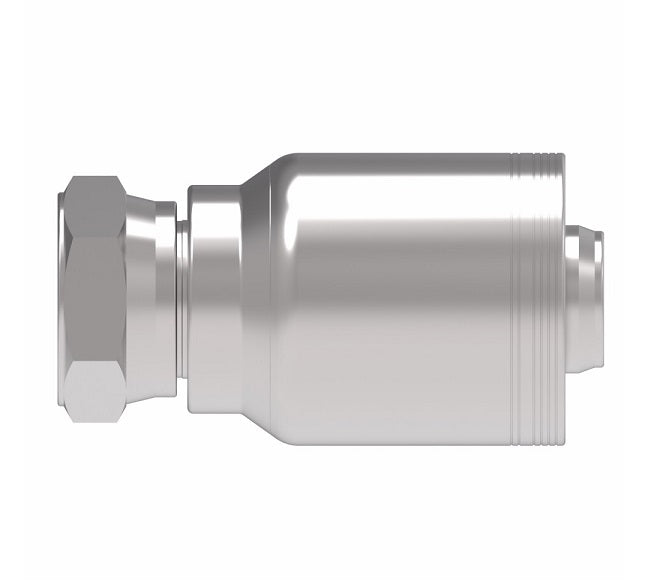

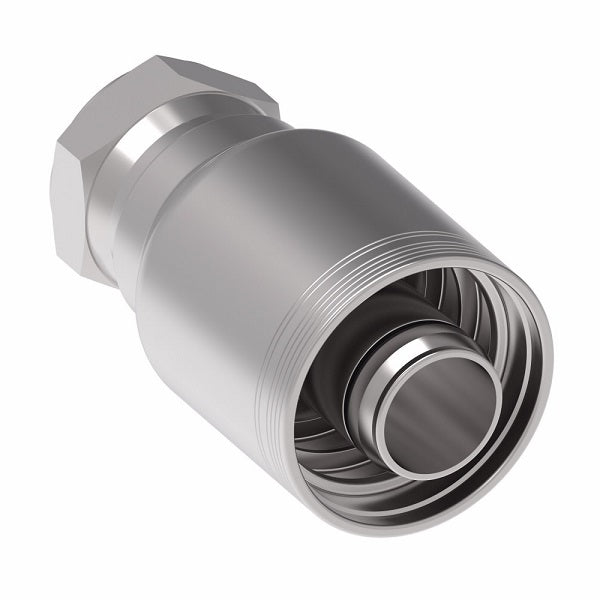

6 Wire 6S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BF) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S24BF24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female BSPP, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash Hex 1
Dash Size DN Dash Size
6S24BF24 -24 38 -24 G 1-1/2" 4.64" 1.57" 1.22" 55mm
6S32BF32 -32 51 -32 G 2" 4.76" 1.69" 1.66" 70mm

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
