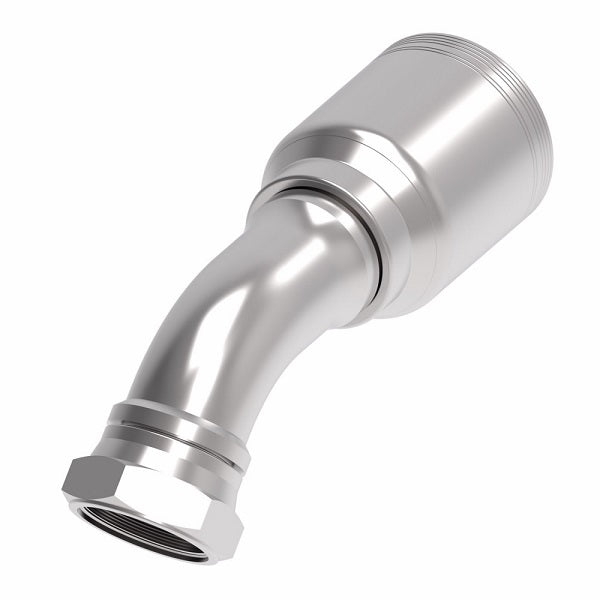

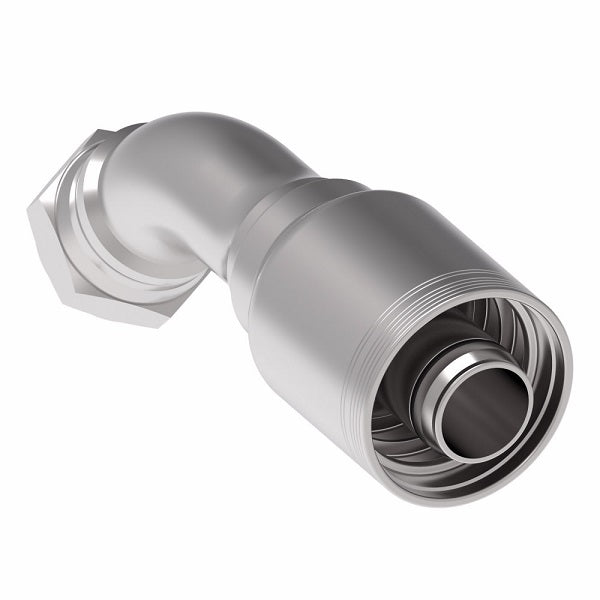

6S24BFA24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -24 Female BSPP swivel x -24 Hose Barb | Steel
6S24BFA24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -24 Female BSPP swivel x -24 Hose Barb | Steel
6S24BFA24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -24 Female BSPP swivel x -24 Hose Barb | Steel

6S24BFA24 Aeroquip by Danfoss | 6 Wire 6S Female BSPP swivel 60° Cone Seat 45° Elbow (BFA) Crimp Fitting | -24 Female BSPP swivel x -24 Hose Barb | Steel

$190.64 - $190.64
$190.64
$190.64 - $190.64
$190.64

Aeroquip® by Danfoss
6 Wire 6S Female BSPP Swivel 60° Cone Seat Crimp Fitting (BFA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S24BFA24 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Female BSPP, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Note:
  • "G" as part of thread size is ISO designation for parallel thread.
Steel
Part Number 		Terminal End Hose Size Thread A D E&Oslash H Hex 1
Dash Size DN Dash Size
6S24BFA24 -24 38 -24 G 1-1/2" 8.20" 5.13" 1.22" 1.67" 55mm
6S32BFA32 -32 51 -32 G 2" 9.78" 6.71" 1.66" 2.13" 70mm
