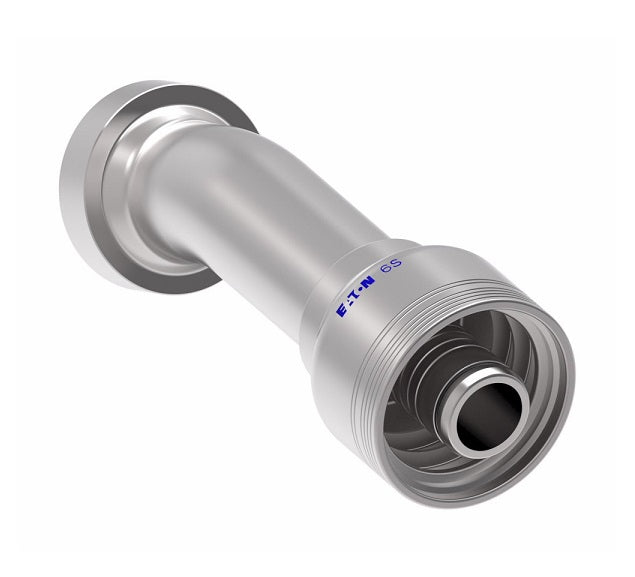

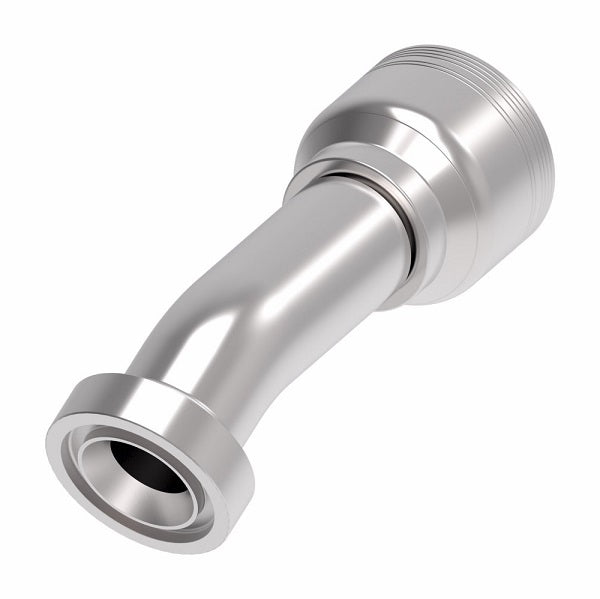

6S24CTD20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel
6S24CTD20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel
6S24CTD20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel

6S24CTD20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 22.5° Elbow (CTD) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel

$223.38 - $223.38
$223.38
$223.38 - $223.38
$223.38

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTD) - 22.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S24CTD20 Danfoss
Shape (Orientation): 22.5 Degree
Ends Configuration: 1-1/2in CAT Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
6S16CTD16 -16 25 -16 1.87" 5.68" 4.11" 0.76" 0.60"
6S20CTD16 -20 25 -16 2.13" 6.48" 4.91" 0.76" 0.70"
6S20CTD20 -20 31 -20 2.13" 7.16" 4.96" 0.99" 0.70"
6S24CTD20 -24 31 -20 2.50" 7.80" 5.59" 0.99" 0.76"
6S24CTD24 -24 38 -24 2.50" 8.97" 5.90" 1.22" 0.76"
6S32CTD32 -32 51 -32 3.13" 10.67" 7.60" 1.66" 0.95"
