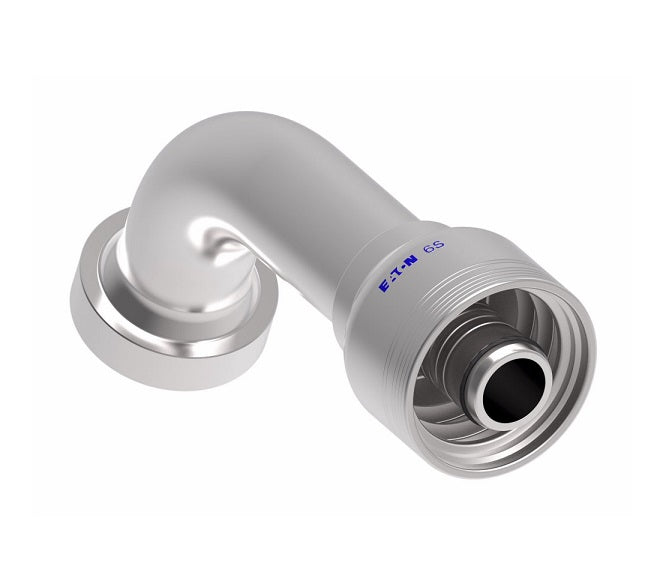

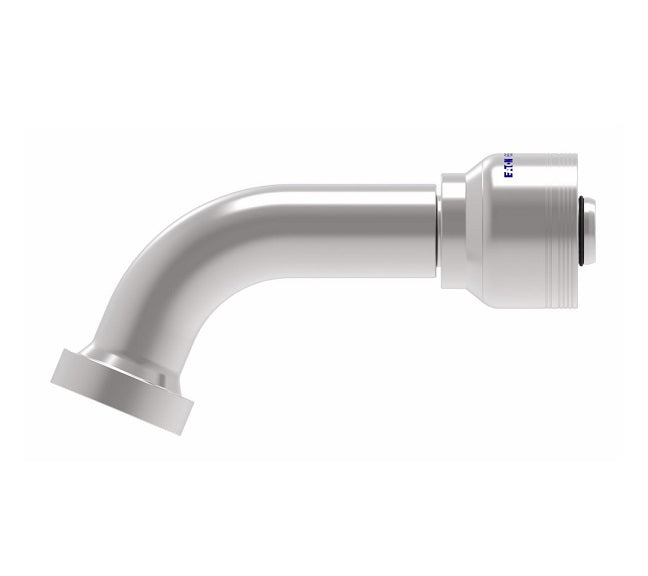

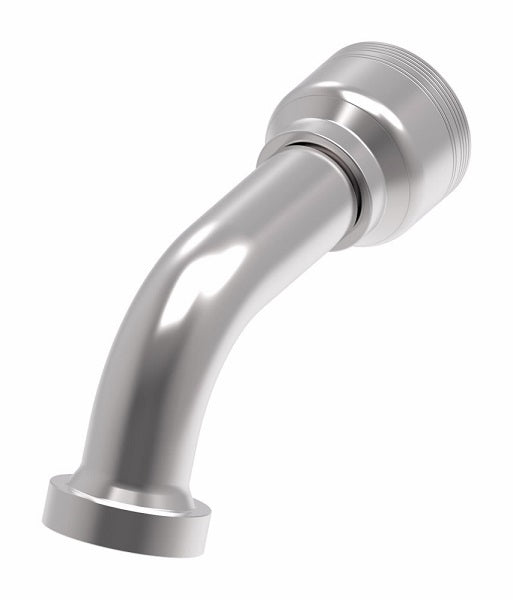

6S24CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel
6S24CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel
6S24CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel

6S24CTE20 Aeroquip by Danfoss | 6 Wire 6S CAT Flange 67.5° Elbow (CTE) Crimp Fitting | -24 CAT Flange x -20 Hose Barb | Steel

$222.52 - $222.52
$222.52
$222.52 - $222.52
$222.52

Aeroquip® by Danfoss
6 Wire 6S CAT Flange Crimp Fitting (CTE) - 67.5° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S24CTE20 Danfoss
Shape (Orientation): 67.5 Degree
Ends Configuration: 1-1/2in CAT Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash H
Dash Size DN Dash Size
6S16CTE16 -16 25 -16 1.87" 5.98" 4.42" 0.76" 2.20"
6S20CTE16 -20 25 -16 2.13" 6.96" 5.40" 0.76" 2.68"
6S20CTE20 -20 31 -20 2.13" 7.65" 5.44" 0.99" 2.68"
6S24CTE20 -24 31 -20 2.50" 8.46" 6.26" 0.99" 3.02"
6S24CTE24 -24 38 -24 2.50" 9.64" 6.57" 1.22" 3.02"
6S32CTE32 -32 51 -32 3.13" 11.72" 8.65" 1.66" 3.97"
