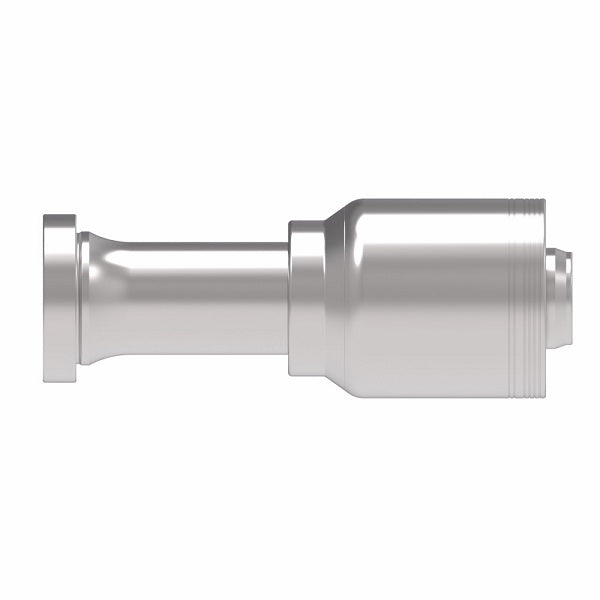

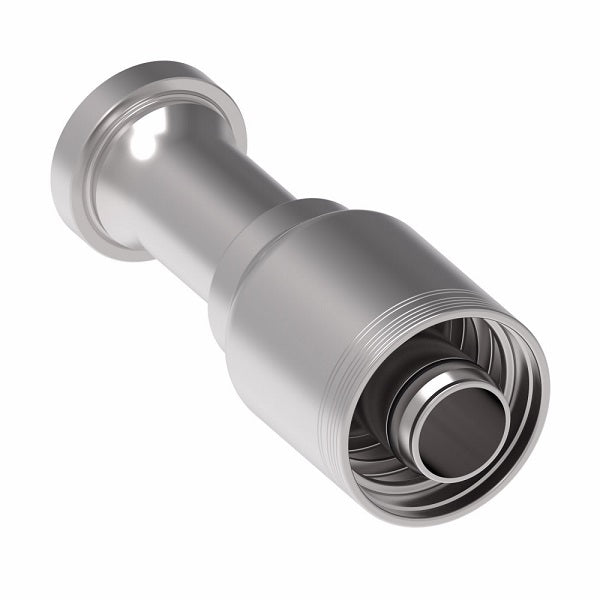

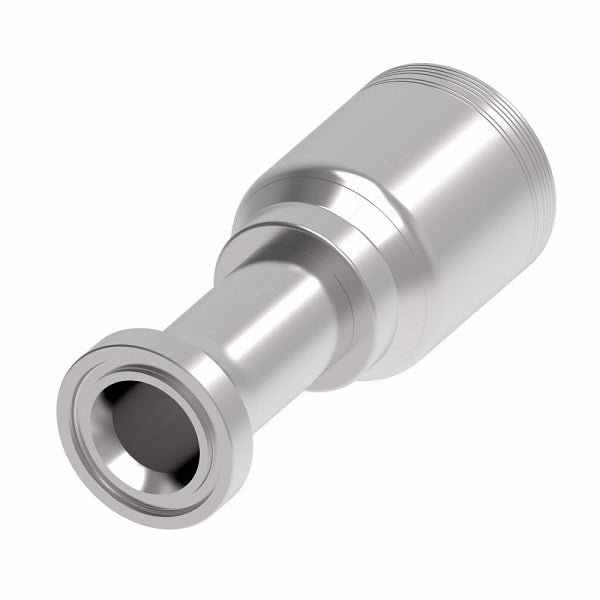

6S24FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel
6S24FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel
6S24FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel

6S24FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -24 Code 62 Flange x -24 Hose Barb | Steel

$150.52 - $150.52
$150.52
$150.52 - $150.52
$150.52

Aeroquip® by Danfoss
6 Wire 6S SAE Code 62 Flange Crimp Fitting (FH) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S24FH24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Code 62 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
6S16FH16 -16 25 -16 1.88" 3.89" 2.33" 0.76"
6S20FH16 -20 25 -16 2.13" 3.97" 2.40" 0.76"
6S20FH20 -20 31 -20 2.13" 4.88" 2.68" 0.99"
6S24FH20 -24 31 -20 2.50" 5.11" 2.91" 0.99"
6S24FH24 -24 38 -24 2.50" 7.46" 4.39" 1.22"
6S32FH24 -32 38 -24 3.13" 8.05" 4.98" 1.22"
6S32FH32 -32 51 -32 3.13" 7.98" 4.91" 1.66"
