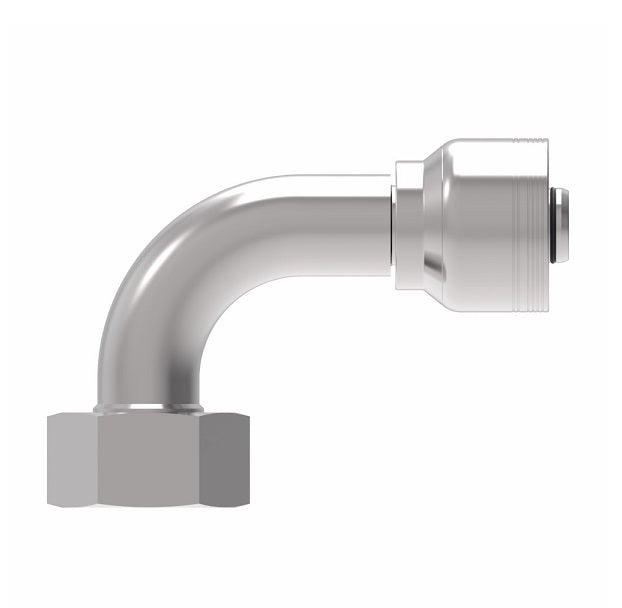

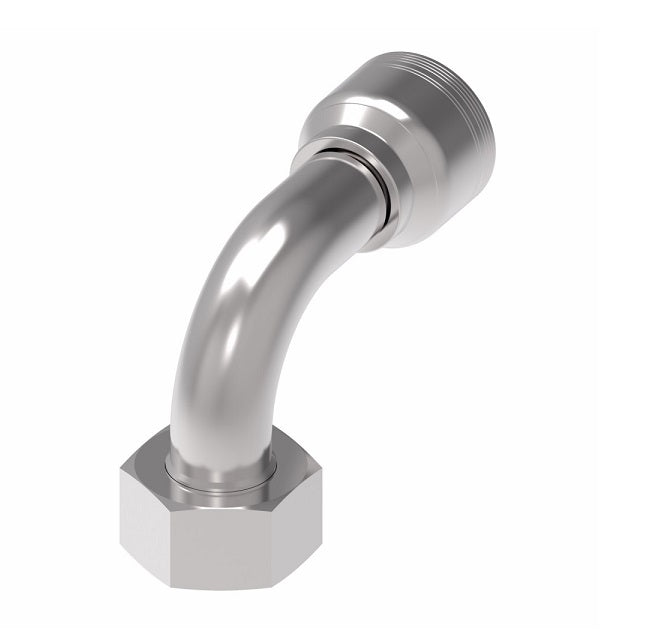

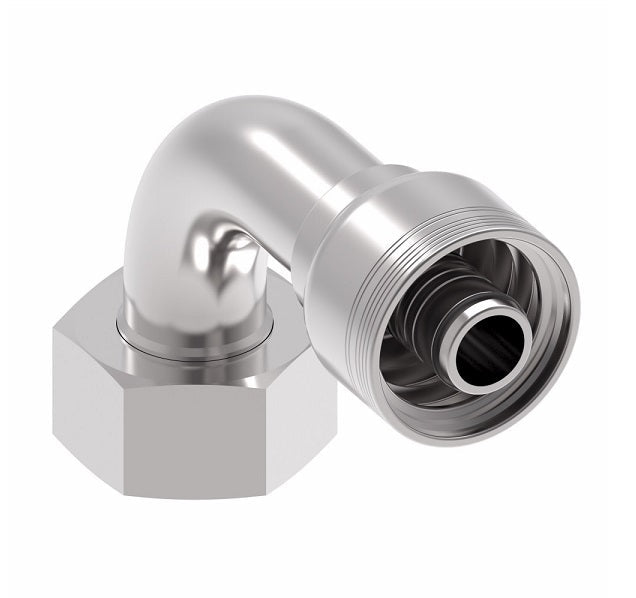

6S32DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

6S32DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel

Name: 6S32DSB16 Aeroquip by Danfoss | 6 Wire 6S Female DIN 24° Seat Swivel DKO (Heavy) 90° Elbow (DSB) Crimp Fitting | S38 Female DKO/DIN 24° Seat x -16 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S32DSB16 Danfoss
Price: 211.66 USD
Availability: InStock

$211.66 - $211.66

$211.66

$211.66 - $211.66

$211.66

Aeroquip® by Danfoss
6 Wire 6S Female DKO/DIN 24° Seat Swivel DKO (Heavy) Crimp Fitting (DSB) - 90° Elbow

S.Rh. DKO (Heavy)

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S32DSB16 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	S38 Female DIN, 1in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Tube OD	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Tube OD	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
6S25DSB16	30	25	-16	M42X2	4.90"	3.34"	0.76"	2.99"	50mm
6S32DSB16	38	25	-16	M52X2	5.38"	3.82"	0.76"	3.50"	60mm
6S32DSB20	38	31	-20	M52X2	6.07"	3.86"	0.99"	3.50"	60mm
