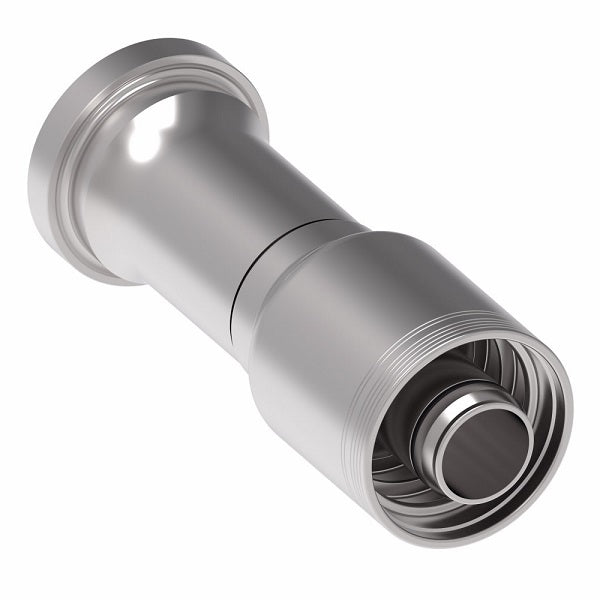

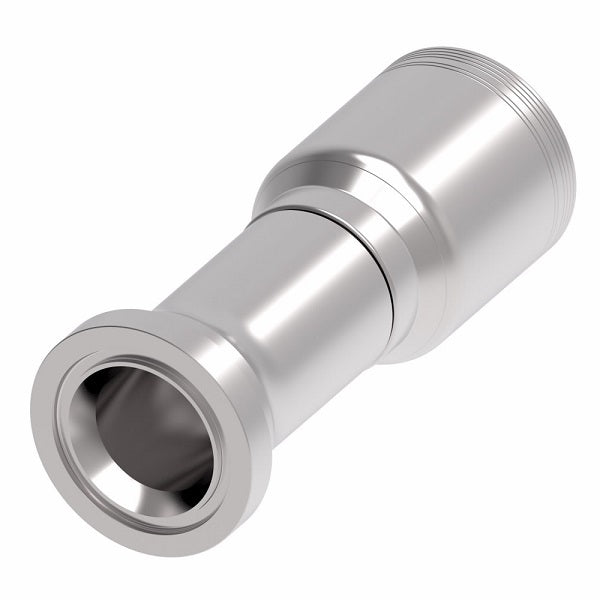

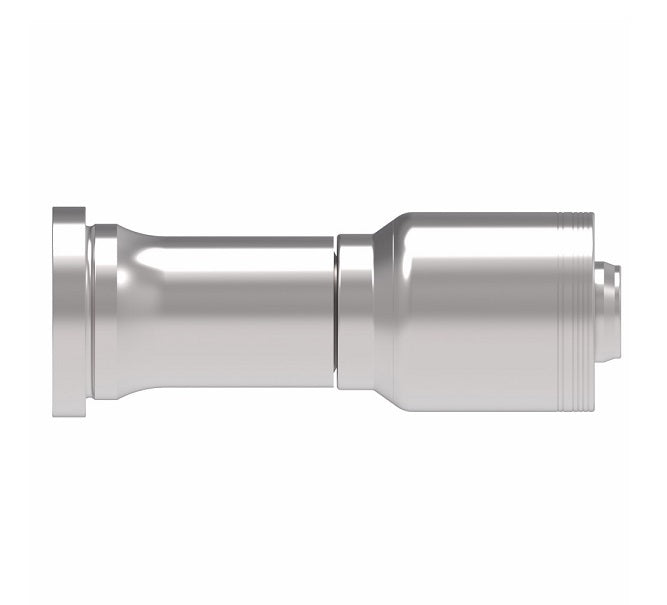

6S32FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel
6S32FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel
6S32FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel

6S32FH24 Aeroquip by Danfoss | 6 Wire 6S SAE Code 62 Flange (FH) Crimp Fitting | -32 Code 62 Flange x -24 Hose Barb | Steel

$265.62 - $265.62
$265.62
$265.62 - $265.62
$265.62

Aeroquip® by Danfoss
6 Wire 6S SAE Code 62 Flange Crimp Fitting (FH) - Straight

Spiral Hose Fitting

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 6S32FH24 Danfoss
Shape (Orientation): Straight
Ends Configuration: 2in Code 62 Flange, 1-1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: FC500 Series  |   FC273B Series  |   FC606 Series  |   EC810 Series  |   GH466 Series
Technical Info:
Steel
Part Number 		Terminal End Hose Size Flange Head
Diameter K Ø		 A D E&Oslash
Dash Size DN Dash Size
6S16FH16 -16 25 -16 1.88" 3.89" 2.33" 0.76"
6S20FH16 -20 25 -16 2.13" 3.97" 2.40" 0.76"
6S20FH20 -20 31 -20 2.13" 4.88" 2.68" 0.99"
6S24FH20 -24 31 -20 2.50" 5.11" 2.91" 0.99"
6S24FH24 -24 38 -24 2.50" 7.46" 4.39" 1.22"
6S32FH24 -32 38 -24 3.13" 8.05" 4.98" 1.22"
6S32FH32 -32 51 -32 3.13" 7.98" 4.91" 1.66"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
