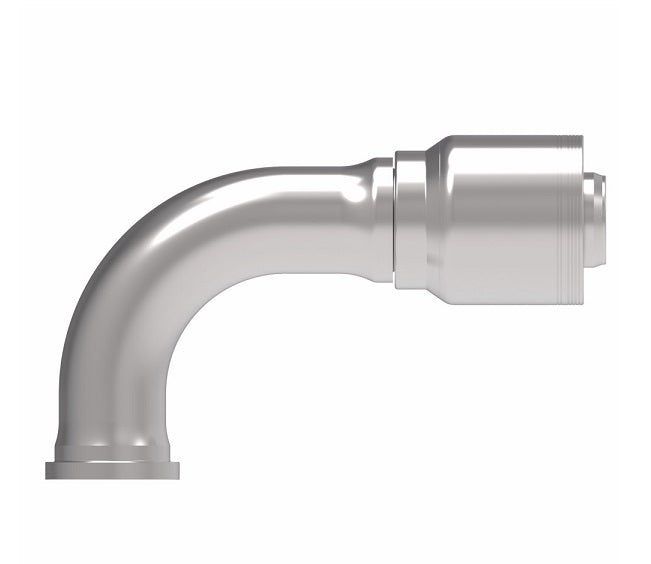

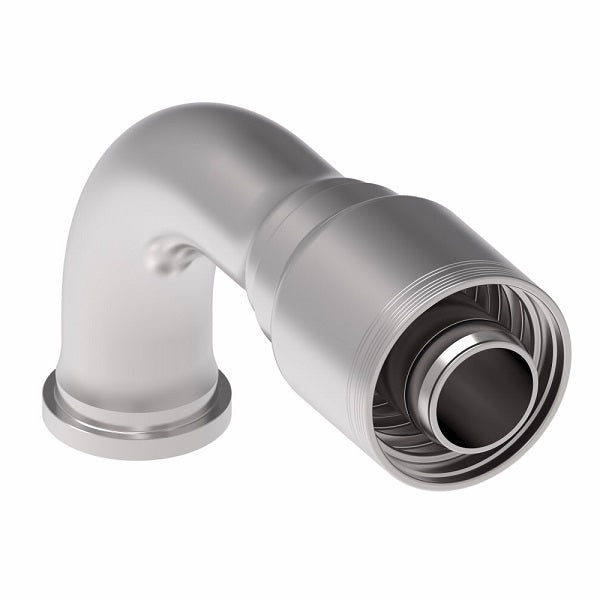

6S32FLB32 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -32 Code 61 Flange x -32 Hose Barb | Steel

6S32FLB32 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -32 Code 61 Flange x -32 Hose Barb | Steel

Name: 6S32FLB32 Aeroquip by Danfoss | 6 Wire 6S SAE Code 61 Flange 90° Elbow (FLB) Crimp Fitting | -32 Code 61 Flange x -32 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6S32FLB32 Danfoss
Price: 303.95 USD
Availability: InStock

$303.95 - $303.95

$303.95

$303.95 - $303.95

$303.95

Aeroquip® by Danfoss
6 Wire 6S SAE Code 61 Flange Crimp Fitting (FLB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 6S32FLB32 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	2in Code 61 Flange, 2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606-16 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Flange Head Diameter K Ø	A	D	E&Oslash	H
Steel Part Number	Dash Size	DN	Dash Size	Flange Head Diameter K Ø	A	D	E&Oslash	H
6S16FLB16	-16	25	-16	1.75"	4.96"	3.39"	0.76"	2.80"
6S20FLB16	-20	25	-16	2.00"	5.72"	4.15"	0.76"	3.50"
6S20FLB20	-20	31	-20	2.00"	6.40"	4.19"	0.99"	3.50"
6S24FLB24	-24	38	-24	2.37"	8.22"	5.15"	1.22"	4.09"
6S32FLB24	-32	38	-24	2.81"	9.74"	6.67"	1.22"	5.43"
6S32FLB32	-32	51	-32	2.81"	9.85"	6.78"	1.66"	5.43"
