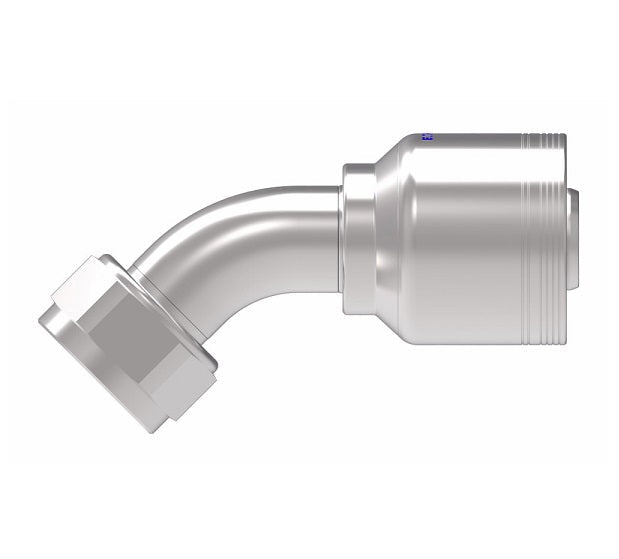

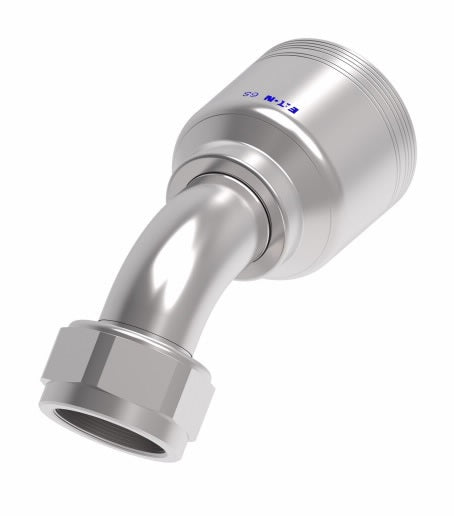

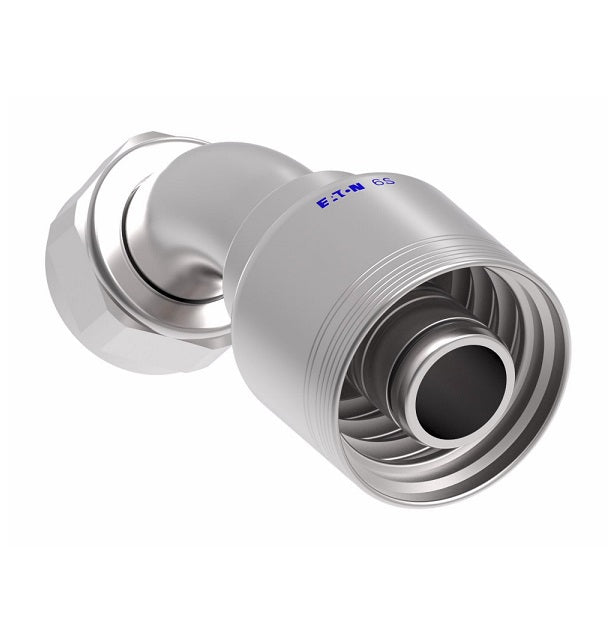

6SA20FJA20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel (FJA) 45° Elbow Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel

6SA20FJA20 Aeroquip by Danfoss | 6 Wire 6S Female JIC/37° Swivel 45° Elbow (FJA) Crimp Fitting | -20 Female JIC/37° Swivel x -20 Hose Barb | Steel | Pack of 10

$1,257.53 - $1,257.53

$1,257.53

$1,257.53 - $1,257.53

$1,257.53

Aeroquip® by Danfoss
6 Wire 6S Female JIC/37° Swivel Crimp Fitting (FJA) - 45° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: 6SA20FJA20 Danfoss \| 10 \|
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Female JIC, 1-1/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF
Note:
When assembled with all Eaton components, all SAE 37° JIC male and female terminal ends in the 4S & 6S product line are rated at the pressures listed in the table and have passed one million impulse cycles at 133% of this pressure. All straight configurations achieve a 4:1 burst. The 45° and 90° elbow configurations in the -12 size meet a 3.2:1 burst The 45° and 90° elbow configurations in the -16 size achieve a 2.8:1 burst The 45° and 90° elbow configurations in the -20 size meet a 4:1 burst The 45° & 90° elbow configurations in the -24 size meet a 2.4:1 burst.


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H
6SA20FJA20	-20	31	-20	1-5/8-12	5.37"	3.17"	0.99"	1.26"	2"
6SA24FJA24	-24	38	-24	1-7/8-12	8.35"	5.28"	1.22"	1.69"	2-1/4"
