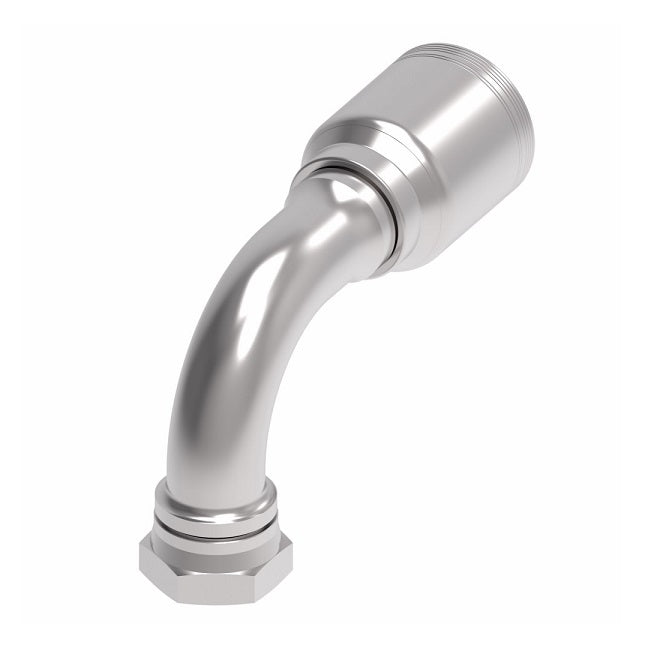

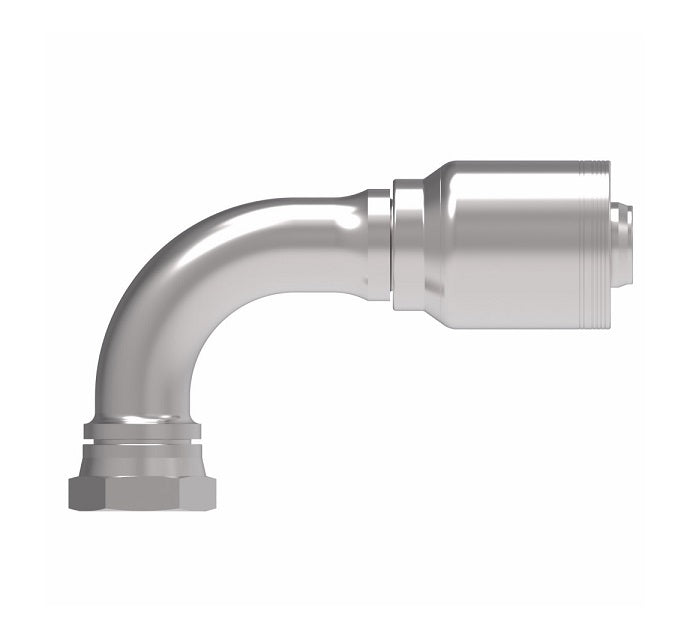

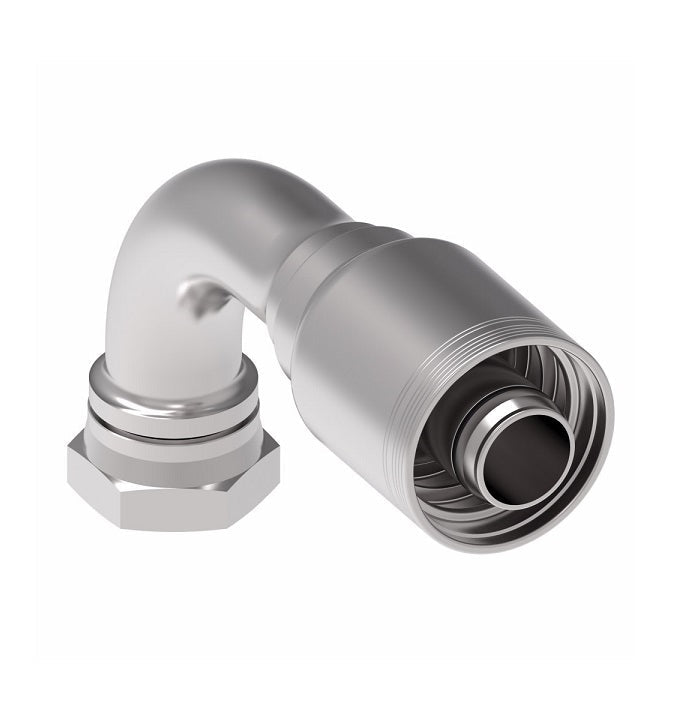

6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel

Name: 6SA24FRB24 Aeroquip by Danfoss | 6 Wire 6S Female ORS Swivel 90° Elbow (FRB) Crimp Fitting | -24 Female O-Ring Face Seal Swivel x -24 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 6SA24FRB24 Danfoss
Price: 300.45 USD
Availability: InStock

$300.45 - $300.45

$300.45

$300.45 - $300.45

$300.45

Aeroquip® by Danfoss
6 Wire 6S Female ORS Swivel Crimp Fitting (FRB) - 90° Elbow

Spiral Hose Fitting

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 6SA24FRB24 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female O-Ring Face Seal, 1-1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC500 Series \| FC273B Series \| FC606 Series \| EC810 Series \| GH466 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Terminal End	Hose Size		Thread	A	D	E&Oslash	H	Hex 1
Steel Part Number	Dash Size	DN	Dash Size	Thread	A	D	E&Oslash	H	Hex 1
6SA16FRB16	-16	25	-16	1-7/16-12	4.44"	2.87"	0.76"	2.80"	1-5/8"
6SA20FRB16	-20	25	-16	1-11/16-12	5.37"	3.81"	0.76"	3.07"	1-7/8"
6SA20FRB20	-20	31	-20	1-11/16-12	6.06"	3.85"	0.99"	3.07"	1-7/8"
6SA24FRB24	-24	38	-24	2-12	8.22"	5.15"	1.22"	4.09"	2-1/4"
