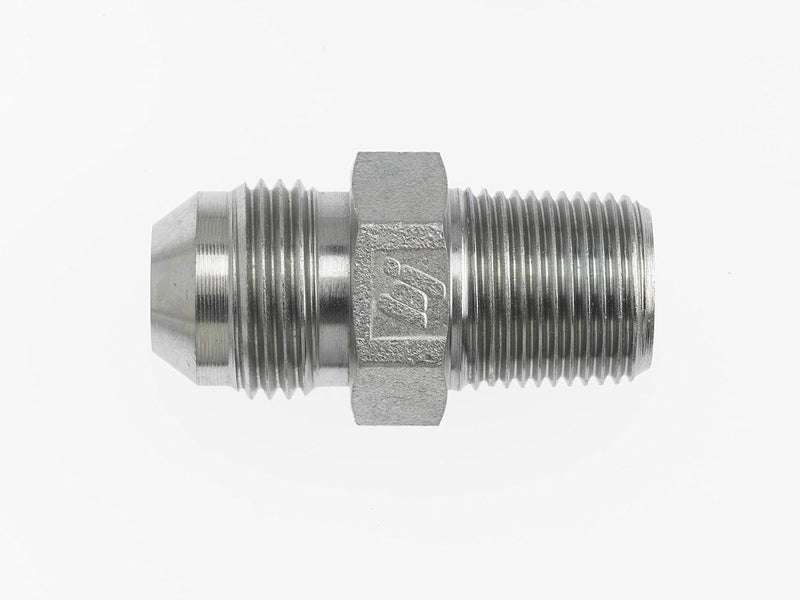

7000-04-02-SS by Brennan Inc. | -04 Male JIC x -02 Male BSPT | Straight | Stainless Steel

7000-04-02-SS by Brennan Inc. | -04 Male JIC x -02 Male BSPT | Straight | Stainless Steel

Save $2.13 Save $2.13
$19.20
$19.20 - $19.20
$19.20
$17.07
$17.07 - $17.07
$17.07

Brennan Inc.
Conversion Adapters: 7000 - Male JIC x Male BSPT Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7000-04-02-SS Brennan
Shape (Orientation): Straight
Material(s): Stainless Steel
Part Number Material TubeO.D B1JIC 37° B2BSPT B1Drill B2Drill LLength CHex
7000-04-02 Steel 1/4" 7/16-20" 1/8-28" 3.8mm 3.8mm 30.0mm 12.0mm
7000-04-04 Steel 1/4" 7/16-20" 1/4-19" 4.4mm 7.0mm 35.1mm 14.0mm
7000-06-06 Steel 3/8" 9/16-18" 3/8-19" 7.0mm 9.0mm 35.5mm 19.0mm
7000-08-08 Steel 1/2" 3/4-16" 1/2-14" 9.9mm 13.5mm 47.5mm 22.2mm
7000-12-08 Steel 3/4" 1-1/16-12" 1/2-14" 15.5mm 13.5mm 52.3mm 27.0mm
7000-12-12 Steel 3/4" 1-1/16-12" 3/4-14" 15.5mm 18.3mm 52.1mm 27.0mm
7000-12-16 Steel 3/4" 1-1/16-12" 1-11" 15.5mm 22.0mm 57.5mm 36.0mm
7000-16-12 Steel 1" 1-5/16-12" 3/4-14" 21.5mm 18.3mm 53.6mm 35.0mm
7000-16-16 Steel 1" 1-5/16-12" 1-11" 21.4mm 23.8mm 58.4mm 35.0mm
7000-20-16 Steel 1-1/4" 1-5/8-12" 1-11" 27.5mm 23.8mm 61.8mm 46.0mm
7000-20-20 Steel 1-1/4" 1-5/8-12" 1-1/4-11" 27.4mm 29.0mm 63.0mm 46.0mm
7000-24-24 Steel 1-1/2" 1-7/8-12" 1-1/2-11" 33.3mm 33.3mm 69.5mm 50.0mm
7000-32-32 Steel 2" 2-1/2-12" 2-11" 45.0mm 45.0mm 80.0mm 65.0mm

7000-04-02-SS Stainless Steel 1/4" 7/16-20" 1/8-28" 3.8mm 3.8mm 30.0mm 12.0mm
ª_x0001_
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
