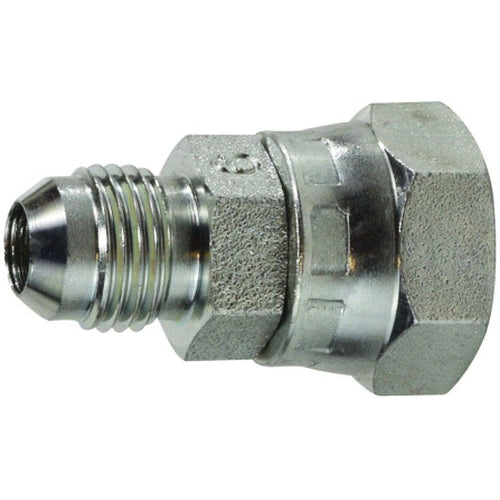

7004-04-02 by Midland | Hydraulic Adapter | 1/4" Male 37° JIC x 1/8" Female BSPP Swivel | Steel

7004-04-02 by Midland | Hydraulic Adapter | 1/4" Male 37° JIC x 1/8" Female BSPP Swivel | Steel

Save $1.07 Save $1.07
$2.67
$2.67 - $2.67
$2.67
$1.60
$1.60 - $1.60
$1.60

Midland Industries
Hydraulic Adapters: Male JIC to Female BSPP Swivel - Steel

Inventory @ Manufacturers Warehouse: 151 Units
Specifications for Variant SKU: 7004-04-02 Midland
Ends Configuration: 1/4in Male JIC, 1/8in Female BSPP
Material(s): Steel
Special Properties: Swivel
Technical Info:
Part Number Male 37° JIC
(1)		 Male 37° JIC
Thread
(1)		 Female BSPP Swivel
(2)		 Female BSPP Swivel
Thread
(2)
7004-04-02 1/4" 7/16-20 1/8" 1/8-28
7004-04-04 1/4" 7/16-20 1/4" 1/4-19
7004-04-06 1/4" 7/16-20 3/8" 3/8-19
7004-04-08 1/4" 7/16-20 1/2" 1/2-14
7004-06-04 3/8" 9/16-18 1/4" 1/4-19
7004-06-06 3/8" 9/16-18 3/8" 3/8-19
7004-06-08 3/8" 9/16-18 1/2" 1/2-14
7004-08-06 1/2" 3/4-16 3/8" 3/8-19
7004-08-08 1/2" 3/4-16 1/2" 1/2-14
7004-08-10 1/2" 3/4-16 5/8" 5/8-14
7004-08-12 1/2" 3/4-16 3/4" 3/4-14
7004-10-08 5/8" 7/8-14 1/2" 1/4-14
7004-10-10 5/8" 7/8-14 5/8" 5/8-14
7004-10-12 5/8" 7/8-14 3/4" 3/4-14
7004-12-12 3/4" 1-1/16-12 3/4" 3/4-14
7004-12-16 3/4" 1-1/16-12 1" 1-11
7004-16-12 1" 1-5/16-12 3/4" 3/4-14
7004-16-16 1" 1-5/16-12 1" 1-11

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
