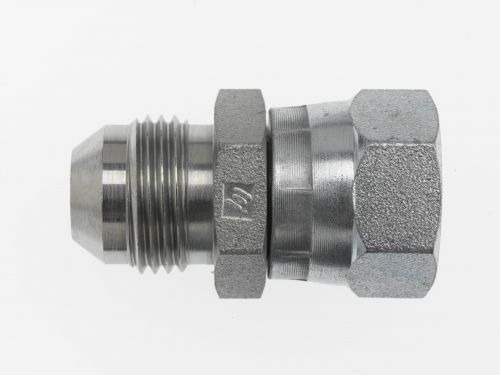

7004-24-24 by Brennan Inc. | -24 Male JIC x -24 Female BSPP Swivel | Straight | Steel

7004-24-24 by Brennan Inc. | -24 Male JIC x -24 Female BSPP Swivel | Straight | Steel

Save $28.41 Save $28.41
$71.02
$71.02 - $71.02
$71.02
$42.61
$42.61 - $42.61
$42.61

Brennan Inc.
Conversion Adapters: 7004 - Male JIC x Female BSPP Swivel Straight
Specifications for Variant SKU: 7004-24-24 Brennan
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male JIC, 1-1/2in Female BSPP
Material(s): Steel
Special Properties: Swivel
Part Number Material TubeO.D B1JIC 37° B2BSPP B1Drill B2Drill LLength C2Hex C1Hex
7004-16-12 Steel 1" 1-5/16-12" 3/4-14" 21.40mm 16.50mm 59.10mm 32.00mm 36.00mm
7004-16-16 Steel 1" 1-5/16-12" 1-11" 20.50mm 20.50mm 62.50mm 36.00mm 41.00mm
7004-20-20 Steel 1-1/4" 1-5/8-12" 1-1/4-11" 26.00mm 26.00mm 65.00mm 50.00mm 50.00mm
7004-24-24 Steel 1-1/2" 1-7/8-12" 1-1/2-11" 33.30mm 33.30mm 79.30mm 55.00mm 50.00mm
7004-32-32 Steel 2" 2-1/2-12" 2-11" 45.2mm 45.2mm 92.50mm 70.00mm 66.70mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
