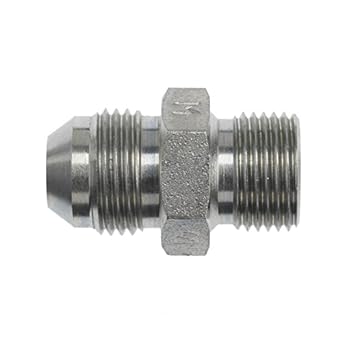

7005-12-L22-30-SS by Brennan Inc. | -12 Male JIC x 30mm Male Metric Bite Type | Straight | Light Port/Tube | Stainless Steel

7005-12-L22-30-SS by Brennan Inc. | -12 Male JIC x 30mm Male Metric Bite Type | Straight | Light Port/Tube | Stainless Steel

$34.14 - $34.14
$34.14
$43.32
$43.32 - $43.32
$43.32

Brennan Inc.
Conversion Adapters: 7005-L - Male JIC x Male Metric Bite Type Straight (Light Port/Tube)
Specifications for Variant SKU: 7005-12-L22-30-SS Brennan
Shape (Orientation): Straight
Ends Configuration: 3/4in Male JIC, 30mm Male Metric
Material(s): Stainless Steel
Part Number Material B1 TubeOD B2 TubeOD B1JIC 37° B2 B1Drill B2Drill LLength CHex
7005-04-L06-12 Steel 1/4" 06mm 7/16-20" M12X1.5 4.00mm 4.00mm 30.80mm 14.00mm
7005-04-L08-14 Steel 1/4" 08mm 7/16-20" M14X1.5 4.20mm 6.00mm 29.50mm 17.00mm
7005-06-L08-14 Steel 3/8" 8mm 9/16-18" M14X1.5 6.00mm 6.00mm 30.60mm 19.00mm
7005-06-L10-16 Steel 3/8" 10mm 9/16-18" M16X1.5 7.50mm 8.00mm 32.70mm 17.00mm
7005-06-L12-18 Steel 3/8" 12mm 9/16-18" M18X1.5 7.00mm 10.00mm 31.50mm 19.00mm
7005-08-L10-16 Steel 1/2" 10mm 3/4-16" M16X1.5 9.60mm 8.00mm 34.00mm 22.00mm
7005-08-L12-18 Steel 1/2" 12mm 3/4-16" M18X1.5 9.90mm 9.90mm 35.50mm 19.00mm
7005-08-L15-22 Steel 1/2" 15mm 3/4-16" M22X1.5 9.60mm 12.00mm 35.50mm 24.00mm
7005-10-L15-22 Steel 5/8" 15mm 7/8-14" M22X1.5 12.00mm 12.00mm 38.00mm 24.00mm
7005-10-L18-26 Steel 5/8" 18mm 7/8-14" M26X1.5 12.30mm 15.00mm 38.80mm 27.00mm
7005-12-L15-22 Steel 3/4" 15mm 1-1/16-12" M22X1.5 15.50mm 12.00mm 44.00mm 30.00mm
7005-12-L18-24 Steel 3/4" 18mm 1-1/16-12" 24X1.5 15.50mm 14.00mm 46.30mm 32.00mm
7005-12-L18-26 Steel 3/4" 18mm 1-1/16-12" M26X1.5 15.50mm 15.00mm 42.00mm 30.00mm
7005-12-L22-30 Steel 3/4" 22mm 1-1/16-12" M30X2 15.50mm 19.00mm 44.00mm 32.00mm
7005-12-L28-36 Steel 3/4" 28mm 1-1/16-12" M36X2 15.50mm 24.00mm 44.50mm 38.00mm
7005-16-L28-36 Steel 1" 28mm 1-5/16-12" M36X2 21.40mm 24.00mm 45.60mm 38.00mm
7005-20-L35-45 Steel 1-1/4" 35mm 1-5/8-12" M45X2 27.40mm 30.00mm 49.80mm 46.00mm
7005-24-L42-52 Steel 1-1/2" 42mm 1-7/8-12" M52X2 33.30mm 36.00mm 54.50mm 55.00mm

7005-12-L22-30-SS Steel 3/4" 22mm 1-1/16-12" M30X2 15.5mm 19.0mm 44.0mm 32.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
