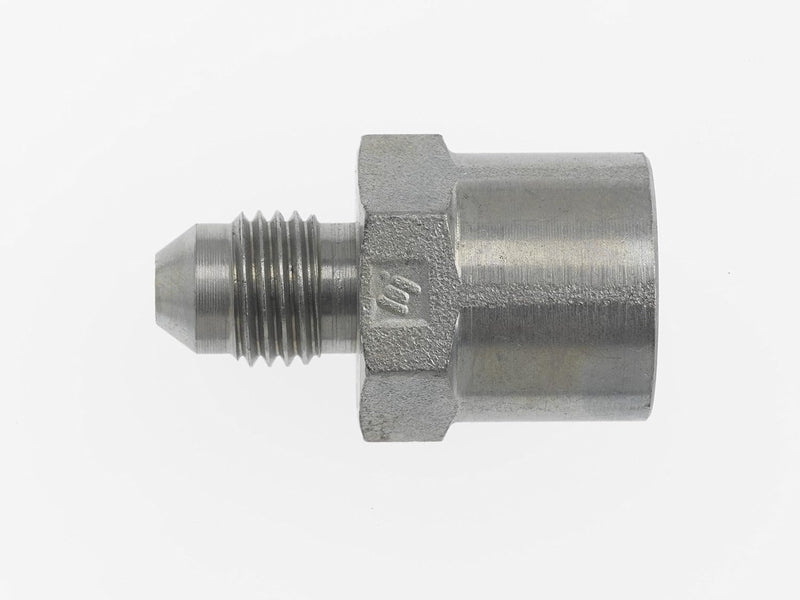

7008-F-04-04 by Brennan Inc. | -04 Male JIC x -04 Female JIS Rigid | Straight | Steel

7008-F-04-04 by Brennan Inc. | -04 Male JIC x -04 Female JIS Rigid | Straight | Steel

$8.18 - $8.18
$8.18
$10.37
$10.37 - $10.37
$10.37

Brennan Inc.
Conversion Adapters: 7008-F - Male JIC x Female JIS Straight
Specifications for Variant SKU: 7008-F-04-04 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/4in Male JIC, 1/4in Female JIS
Material(s): Steel
Part Number Material TubeO.D B1JIC 37° B2JIS BSPP B1Drill LLength CHex
7008-F-04-04 Steel 1/4" 7/16-20" 1/4-19" 4.40mm 34.50mm 19.00mm
7008-F-06-06 Steel 3/8" 9/16-18" 3/8-19" 7.50mm 35.10mm 22.20mm
7008-F-08-08 Steel 1/2" 3/4-16" 1/2-14" 9.50mm 43.50mm 27.00mm
7008-F-12-12 Steel 3/4" 1-1/16-12" 3/4-14" 15.50mm 44.00mm 36.00mm
7008-F-16-16 Steel 1" 1-5/16-12" 1-11" 19.70mm 54.10mm 41.30mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
