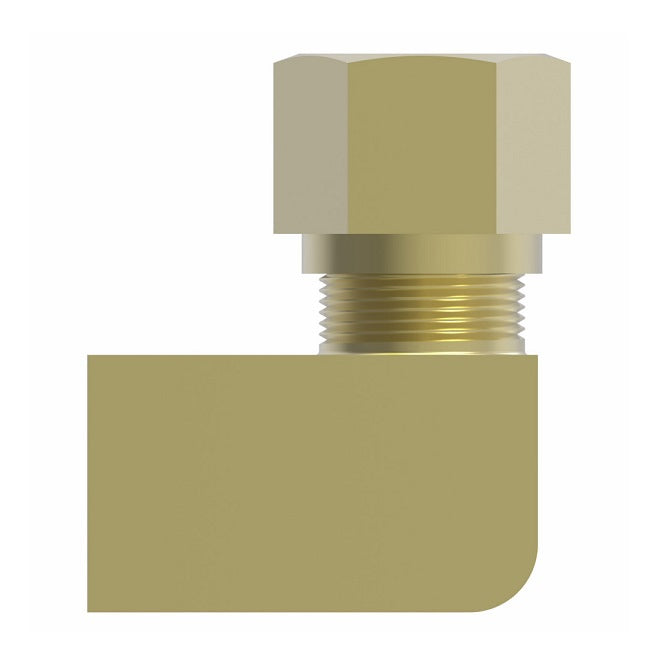

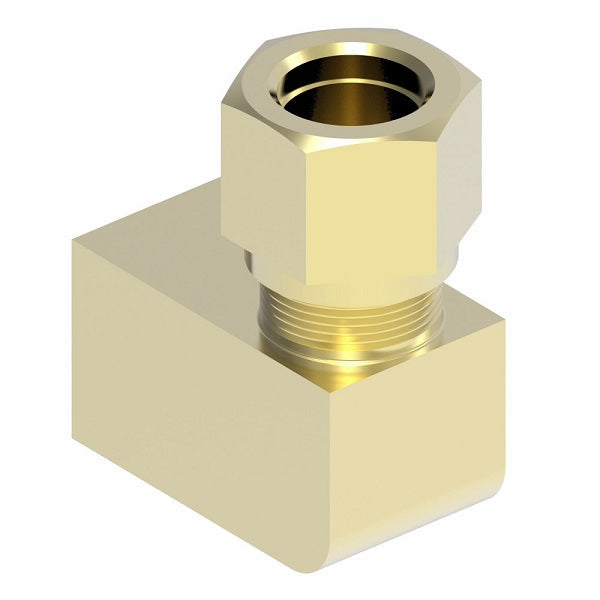

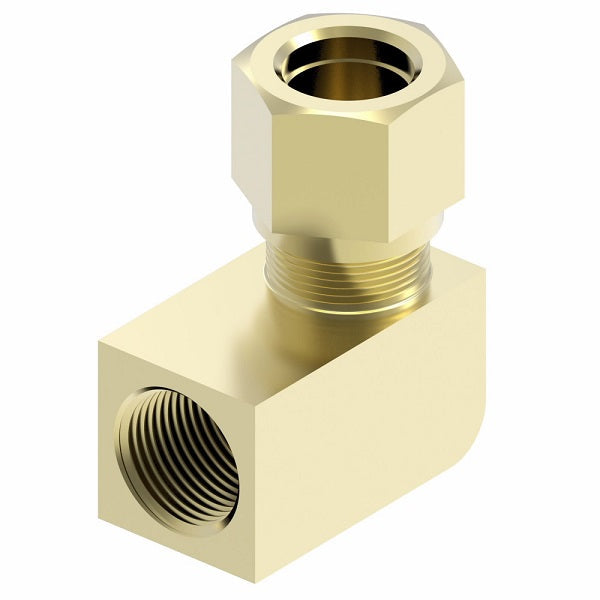

701X3 by Danfoss | SelfAlign Adapter | Female 90° Elbow | 3/16" Tube OD x 1/8" Female NPTF | Brass
701X3 by Danfoss | SelfAlign Adapter | Female 90° Elbow | 3/16" Tube OD x 1/8" Female NPTF | Brass
701X3 by Danfoss | SelfAlign Adapter | Female 90° Elbow | 3/16" Tube OD x 1/8" Female NPTF | Brass
701X3 by Danfoss | SelfAlign Adapter | Female 90° Elbow | 3/16" Tube OD x 1/8" Female NPTF | Brass

701X3 by Danfoss | SelfAlign Adapter | Female 90° Elbow | 3/16" Tube OD x 1/8" Female NPTF | Brass

$34.20 - $34.20
$34.20
$34.20 - $34.20
$34.20

Aeroquip® by Danfoss
SelfAlign Adapter - Female Elbow
SelfAlign End x Female NPTF End
90° Elbow
Specifications for Variant SKU: 701X3 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/16in Tube Compression, 1/8in Female NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Female Pipe Thread D M N
701X3 3/16" 1/8" 0.125" 0.69" 0.56"
701X4 1/4" 1/8" 0.188" 0.69" 0.56"
