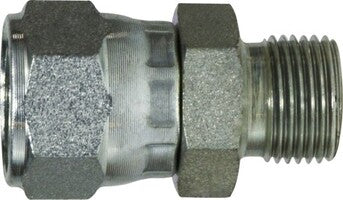

7022-12-08 by Midland | Hydraulic JIC to BSPP Swivel | 3/4" Female JIC 37° Flare x 1/2" Male BSPP | Straight | Steel

7022-12-08 by Midland | Hydraulic JIC to BSPP Swivel | 3/4" Female JIC 37° Flare x 1/2" Male BSPP | Straight | Steel

Save $4.74 Save $4.74
$7.88
$7.88 - $7.88
$7.88
$3.14
$3.14 - $3.14
$3.14

Midland Industries
Hydraulic Adapters: JIC to BSPP Straight Swivel - Steel

Inventory @ Manufacturers Warehouse: 199 Units
Specifications for Variant SKU: 7022-12-08 Midland
Ends Configuration: 3/4in Female JIC, 1/2in Male BSPP
Material(s): Steel
Special Properties: Swivel
Technical Info:
Crossover Series:
3402 3055
Part Number Female JIC 37° Flare
(1)		 Female JIC 37° Flare Thread
(1)		 Male BSPP
(2)		 Male BSPP Thread
(2)
700242
(7002-4-2) 		1/4" 7/16-20 1/8" 1/8-28
702244
(7022-4-4) 		1/4" 7/16-20 1/4" 1/4-19
702264
(7022-6-4) 		3/8" 9/16-18 1/4" 1/4-19
702266
(7022-6-6) 		3/8" 9/16-18 3/8" 3/8-19
7022-06-08 3/8" 9/16-18 1/2" 1/2-14
702286
(7022-8-6) 		1/2" 3/4-16 3/8" 3/8-19
702288
(7022-8-8) 		1/2" 3/4-16 1/2" 1/2-14
7022-08-10 1/2" 3/4-16 5/8" 5/8-14
7022-08-12 1/2" 3/4-16 1/2" 1/2-14
7022-10-06 5/8" 7/8-14 3/8" 3/8-19
7022108
(7022-10-8) 		5/8" 7/8-14 1/2" 1/2-14
7022-10-10 5/8" 7/8-14 5/8" 5/8-14
7022-12-08 3/4" 1-1/16-12 1/2" 1/4-14
70221212
(7002-12-12) 		3/4" 1-1/16-12 3/4" 3/4-14
7022-12-16 3/4" 1-1/16-12 1" 1-11
70221616
(7022-16-16) 		1" 1-5/16-12 1" 1-11

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
