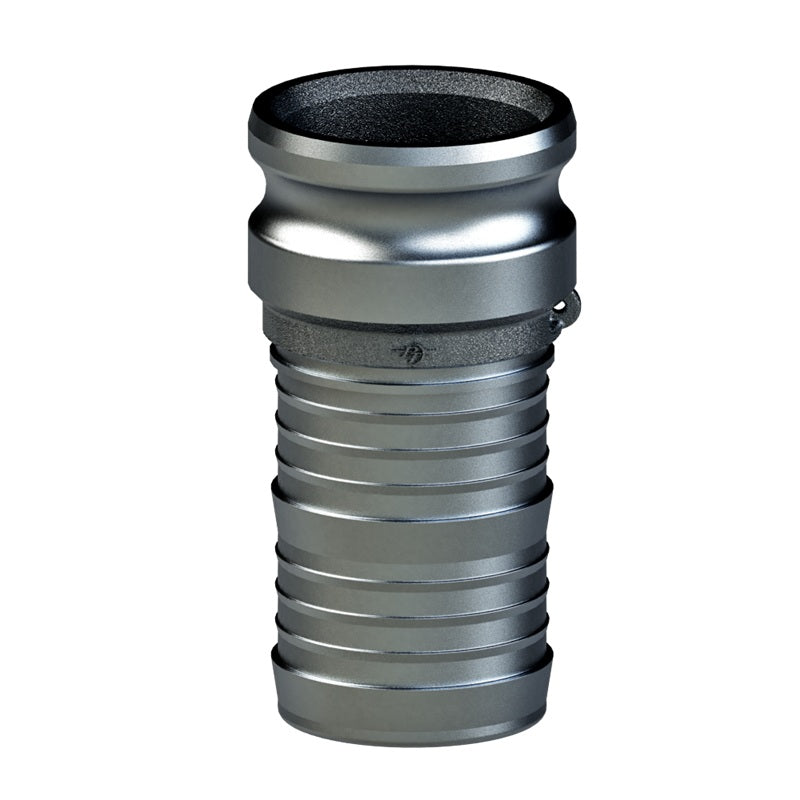

70243020 (30X20E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 3" Adapter x 2" Hose Shank | Hard Coat Aluminum

Name: 70243020 (30X20E) by PT-Coupling | Reducing Cam & Groove Fitting | Type E | 3" Adapter x 2" Hose Shank | Hard Coat Aluminum
Brand: PT-Coupling
SKU: 70243020 PT-Coupling
Price: 63.28 USD
Availability: InStock

Save $7.91

$71.19

$71.19 - $71.19

$71.19

$63.28

$63.28 - $63.28

$63.28

PT Coupling
Reducing Cam & Groove (Camlock) Fitting | Type E | Adapter x Hose Shank | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 70243020 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	3in Male Cam & Groove, 2in Hose Barb
Material(s):	Hard Coat Aluminum

Features & Applications:
This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance. Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products. Made in the USA

Part Name	Item #	Adapter Size	Hose Shank Size	Max. Allowable Working Press. (PSI)*
20X15E	70242015	2"	1-1/2"	250 PSI
30X20E	70243020	3"	2"	200 PSI
40X30E	70244030	4"	3"	150 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
