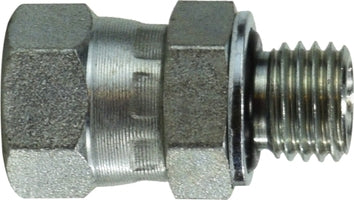

7025616 (7025-6-16) Midland Hydraulic JIC to Metric Male Connector - 9/16-18 Female JIC 37° Flare x 16x1.5 Male Metric - Steel

7025616 by Midland | Hydraulic JIC to Metric Connector | 9/16-18 Female JIC 37° Flare x 16x1.5 Male Metric | Steel

Save $5.63 Save $5.63
$14.07
$14.07 - $14.07
$14.07
$8.44
$8.44 - $8.44
$8.44

Midland Industries
Hydraulic Metric Adapters: JIC to Metric Male Connector - Steel

Inventory @ Manufacturers Warehouse: 5 Units
Specifications for Variant SKU: 7025616 Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 16mm Male Metric
Material(s): Steel
Technical Info:
Crossover Series:
7402 30JS (R)
Part Number Female JIC 37° Flare Thread
(1)		 Male Metric Thread
(2)
7025410
(7025-4-10) 		7/16-20 10x1.0
7025412
(7025-4-12) 		7/16-20 12x1.5
7025512
(7025-5-12) 		1/2-20 12x1.5
7025614
(7025-6-14) 		9/16-18 14x1.5
7025616
(7025-6-16) 		9/16-18 16x1.5
7025816
(7025-8-16) 		3/4-16 16x1.5
70251022
(7025-10-22) 		7/8-14 22x1.5
70251227
(7025-12-27) 		1-1/16-12 27x2.0
70251633
(7025-16-33) 		1-5/16-12 33x2.0
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
