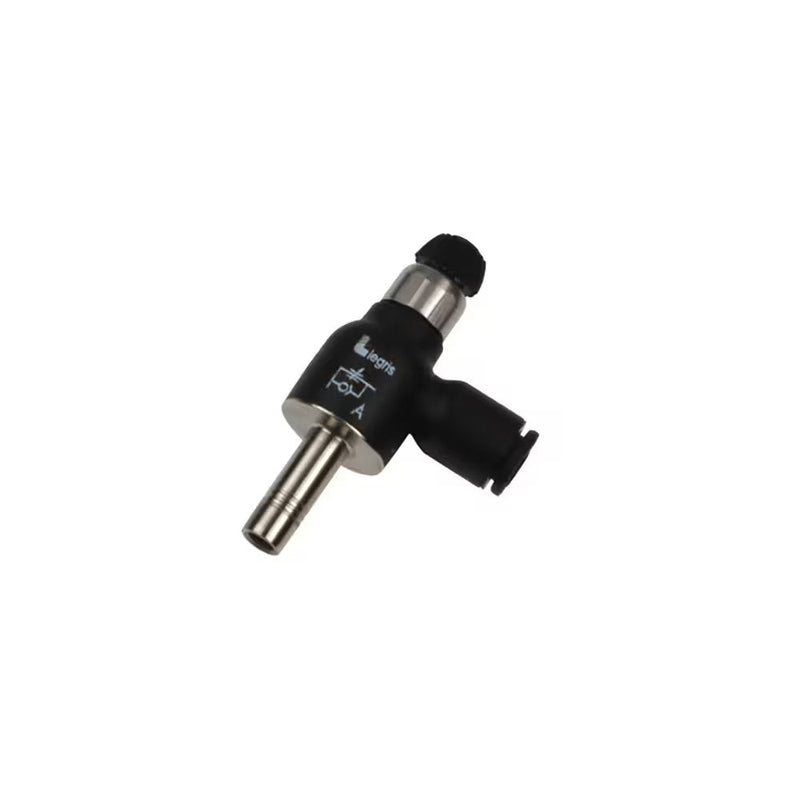

7031 08 00 by Parker | Legris Compact Plug-In Flow Regulator | 8mm Tube Size | 68mm Max Length | 90° Elbow | Polymer | Pack of 10

Save $29.11

$242.31

$242.31 - $242.31

$242.31

$213.20

$213.20 - $213.20

$213.20

by Parker Hannifin
Flow Control Regulators:7031 Compact Plug-In Flow Regulator, Supply

Package Quantity: 10 Units

Specifications for Variant SKU: 7031 08 00 Parker \| 10 \|
Series:	7031 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	F	G	H (max)	H (min)	H1	H2	L	Kg
7031 06 00	6 mm	10 mm	16 mm	41 mm	35 mm	14 mm	17 mm	22 mm	.013 Kg
7031 08 00	8 mm	14 mm	19 mm	46.5 mm	39.5 mm	16 mm	21.5 mm	28 mm	.035 Kg
