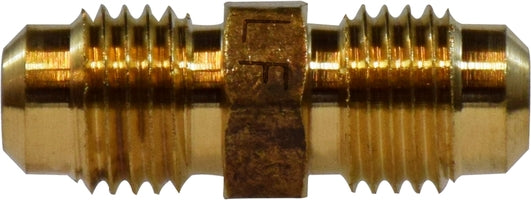

704042-08 Midland Lead Free 45° SAE Flare Fitting - Male Union - 1/2" Male UNF x 1/2" Male UNF - Brass

704042-08 by Midland | Lead Free 45° SAE Flare Fitting | Union | 1/2" Male UNF x 1/2" Male UNF | Brass | Replaces: 10109LF / 10-109LF

Save $0.48 Save $0.48
$4.29
$4.29 - $4.29
$4.29
$3.81
$3.81 - $3.81
$3.81

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Male Union

Inventory @ Manufacturers Warehouse: 5182 Units
Specifications for Variant SKU: 704042-08 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Male SAE 45 Flare, 1/2in Male SAE 45 Flare, Some Ends Match
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines Used With: Copper, Brass, Aluminum, or Steel Tubing
Temperature Range: -40°F to +250°F Conformance: Meet functional requirements for SAE, ASME and ASA codes for pressure piping.
Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Two pieces construction - nut and body.
  • Resists mechanical pullout.
  • Easy to disassemble and can be reassembled many times, with no effect on the seal.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 11/16-14 1-1/4-12 1 3/8-12
Crossover Series:
LF242
Part Number Male UNF x Male UNF
704042-02 1/8" x 1/8"
704042-04 1/4" x 1/4"
704042-05 5/16" x 5/16"
704042-06 3/8" x 3/8"
704056-0604 3/8" x 1/4"
704042-08 1/2" x 1/2"
704056-0804 1/2" x 1/4"
704056-0806 1/2" x 3/8"
704042-10 5/8" x 5/8"
704056-1006 5/8" x 3/8"
704056-1008 5/8" x 1/2"
