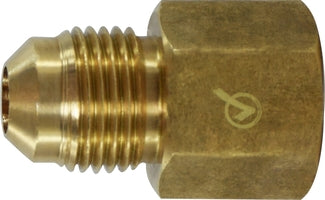

704046-0608 Midland Lead Free 45° SAE Flare Fitting - Female Adapter - 3/8" Male Flare x 1/2" Female NPTF - Brass

704046-0608 by Midland | Lead Free 45° SAE Flare Fitting | 3/8" Male Flare x 1/2" Female NPTF | Adapter | Brass | Replaces: 10237LF / 10-237LF

Save $0.42

$3.81

$3.81 - $3.81

$3.81

$3.39

$3.39 - $3.39

$3.39

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Female Adapter

Inventory @ Manufacturers Warehouse: 3377 Units

Quantity

Specifications for Variant SKU: 704046-0608 Midland
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male SAE 45 Flare, 1/2in Female NPTF
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines	Used With:	Copper, Brass, Aluminum, or Steel Tubing
Temperature Range:	-40°F to +250°F	Conformance:	Meet functional requirements for SAE, ASME and ASA codes for pressure piping. Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Two pieces construction - nut and body. Resists mechanical pullout. Easy to disassemble and can be reassembled many times, with no effect on the seal.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread Size	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-16	3/4-16	7/8-14	11/16-14	1-1/4-12	1 3/8-12

Crossover Series:
LF46

Part Number	Male Flare x Female NPTF
704046-0402	1/4" x 1/8"
704046-0404	1/4" x 1/4"
704046-0406	1/4" x 3/8"
704046-0408	1/4" x 1/2"
704046-0502	5/16" x 1/8"
704046-0504	5/16" x 1/4"
704046-0602	3/8" x 1/8"
704046-0604	3/8" x 1/4"
704046-0606	3/8" x 3/8"
704046-0608	3/8" x 1/2"
704046-0612	3/8" x 3/4"
704046-0804	1/2" x 1/4"
704046-0806	1/2" x 3/8"
704046-0808	1/2" x 1/2"
704046-0812	1/2" x 3/4"
704046-1006	5/8" x 3/8"
704046-1008	5/8" x 1/2"
704046-1012	5/8" x 3/4"
704046-1212	3/4" x 3/4"
