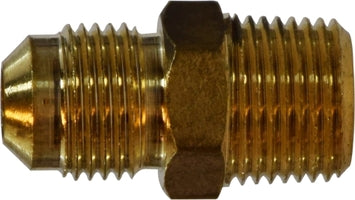

704048-0502 Midland Lead Free 45° SAE Flare Fitting - Male Adapter - 5/16" Male Flare x 1/8" Male NPTF - Brass

704048-0502 by Midland | Lead Free 45° SAE Flare Fitting | 5/16" Male Flare x 1/8" Male NPTF | Adapter | Brass | Replaces: 10259LF

Save $1.47 Save $1.47
$3.67
$3.67 - $3.67
$3.67
$2.20
$2.20 - $2.20
$2.20

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Male Adapter
Specifications for Variant SKU: 704048-0502 Midland
Shape (Orientation): Straight
Ends Configuration: 5/16in Male SAE 45 Flare, 1/8in Male NPTF
Material(s): Lead Free Brass
Applicable Specs & Approvals: Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free

SPECIFICATIONS

Applications: Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines Used With: Copper, Brass, Aluminum, or Steel Tubing
Temperature Range: -40°F to +250°F Conformance: Meet functional requirements for SAE, ASME and ASA codes for pressure piping.
Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free: Yes. Lead Free Info (PDF)
Features:
  • Two pieces construction - nut and body.
  • Resists mechanical pullout.
  • Easy to disassemble and can be reassembled many times, with no effect on the seal.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-16 3/4-16 7/8-14 11/16-14 1-1/4-12 1 3/8-12
Crossover Series:
LF48 LF248
Part Number Male Flare x Male NPTF
704048-0202 1/8" x 1/8"
704048-0302 3/16" x 1/8"
704048-0402 1/4" x 1/8"
704048-0404 1/4" x 1/4"
704048-0406 1/4" x 3/8"
704048-0408 1/4" x 1/2"
704048-0502 5/16" x 1/8"
704048-0504 5/16" x 1/4"
704048-0506 5/16" x 3/8"
704048-0602 3/8" x 1/8"
704048-0604 3/8" x 1/4"
704048-0606 3/8" x 3/8"
704048-0608 3/8" x 1/2"
704048-0612 3/8" x 3/4"
704048-0804 1/2" x 1/4"
704048-0806 1/2" x 3/8"
704048-0808 1/2" x 1/2"
704048-0812 1/2" x 3/4"
704048-1006 5/8" x 3/8"
704048-1008 5/8" x 1/2"
704048-1012 5/8" x 3/4"
704048-1208 3/4" x 1/2"
704048-1212 3/4" x 3/4"
704048-1412 7/8" x 3/4"
