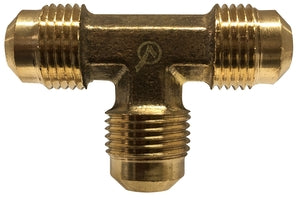

704059-080806 Midland Lead Free 45° SAE Flare Fitting - Reducing Male Union Tee - 1/2" Male UNF x 1/2" Male UNF x 3/8" Male UNF - Brass

704059-080806 by Midland | Lead Free 45° SAE Flare Fitting | Reducing Male Union | 1/2" Male UNF x 1/2" Male UNF x 3/8" Male UNF | Tee | Brass | Replaces: 10181LF

Save $5.73

$14.32

$14.32 - $14.32

$14.32

$8.59

$8.59 - $8.59

$8.59

Midland Industries
Lead Free Brass Fitting - 45° SAE Flare Fitting - Reducing Male Union Tee

Inventory @ Manufacturers Warehouse: 969 Units

Specifications for Variant SKU: 704059-080806 Midland
Shape (Orientation):	Tee
Ends Configuration:	1/2in Male SAE 45 Flare, 1/2in Male SAE 45 Flare, 3/8in Male SAE 45 Flare, Some Ends Match
Material(s):	Lead Free Brass
Applicable Specs & Approvals:	Lead Free as per the Safe Drinking Water Act
Special Properties:	Lead Free

SPECIFICATIONS

Applications:	Fuel Equipment, Plumbing, Gases, Refrigeration, and Vacuum Lines	Used With:	Copper, Brass, Aluminum, or Steel Tubing
Temperature Range:	-40°F to +250°F	Conformance:	Meet functional requirements for SAE, ASME and ASA codes for pressure piping. Meets specifications and standards in Section 1417 of the Safe Drinking Water Act.
Lead Free:	Yes. Lead Free Info (PDF)

Features:
Two pieces construction - nut and body. Resists mechanical pullout. Easy to disassemble and can be reassembled many times, with no effect on the seal.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	7/8"	1"
Thread Size	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-16	3/4-16	7/8-14	11/16-14	1-1/4-12	1 3/8-12


Part Number	Male UNF (1 x 2 x 3)
704059-060608	3/8" x 3/8" x 1/2"
704059-080806	1/2" x 1/2" x 3/8"
704059-080810	1/2" x 1/2" x 5/8"
704059-101008	5/8" x 5/8" x 1/2"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.

Shop Parts by Midland Industries
