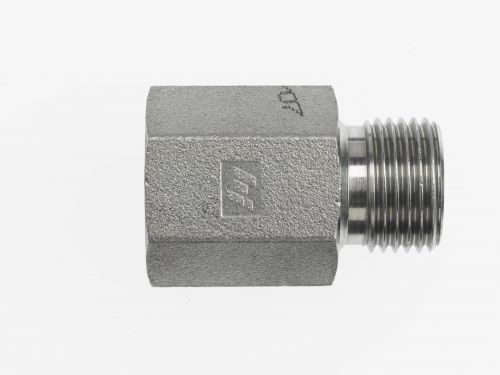

7042-20-20 by Brennan Inc. | -20 Female Pipe x -20 Male BSPP | Straight | Steel

7042-20-20 by Brennan Inc. | -20 Female Pipe x -20 Male BSPP | Straight | Steel

Save $4.35 Save $4.35
$39.12
$39.12 - $39.12
$39.12
$34.77
$34.77 - $34.77
$34.77

Brennan Inc.
Conversion Adapters: 7042 - Female Pipe x Male BSPP Straight
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 7042-20-20 Brennan
Shape (Orientation): Straight
Material(s): Steel
Part Number Material A1NPTF B2BSPP B2Drill LLength CHex
7042-04-04 Steel 1/4-18" 1/4-19" 6.00mm 32.50mm 19.00mm
7042-16-16 Steel 1-11-1/2" 1-11" 21.50mm 56.00mm 41.00mm
7042-16-20 Steel 1-11-1/2" 1-1/4-11" 28.60mm 60.00mm 50.00mm
7042-20-16 Steel 1-1/4-11-1/2" 1-11" 23.00mm 57.00mm 50.80mm
7042-20-20 Steel 1-1/4-11-1/2" 1-1/4-11" 28.60mm 60.00mm 50.00mm
7042-20-24 Steel 1-1/4-11-1/2" 1-1/2-11" 33.30mm 45.00mm 55.00mm
7042-24-20 Steel 1-1/2-11-1/2" 1-1/4-11" 28.60mm 58.40mm 60.30mm
7042-24-24 Steel 1-1/2-11-1/2" 1-1/2-11" 33.20mm 62.00mm 57.00mm
7042-32-32 Steel 2-11-1/2" 2-11" 45.80mm 69.90mm 73.00mm

7042-04-04-SS Stainless Steel 1/4-18" 1/4-19" 6.00mm 32.50mm 19.00mm
7042-06-06-SS Stainless Steel - - - - -
7042-16-16-SS Stainless Steel - - - - -
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
