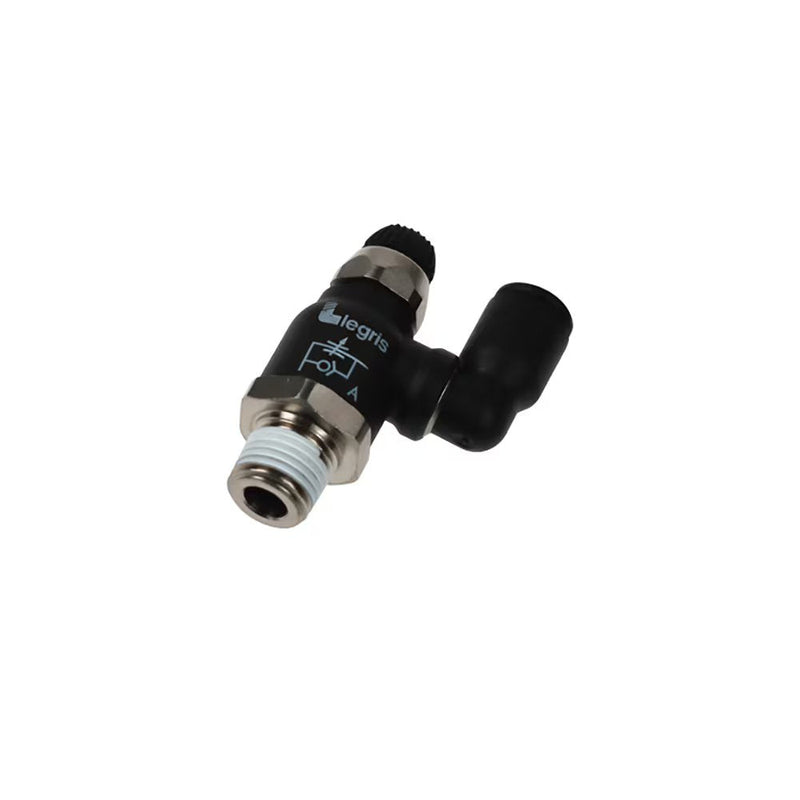

7045 12 17 by Parker | Legris Compact Swivel Outlet Flow Control | 12 mm Push-to-Connect x 3/8" Male BSPT Thread | 23 mm Hex | Multi-Directional | Pack of 10

Save $348.53

$871.33

$871.33 - $871.33

$871.33

$522.80

$522.80 - $522.80

$522.80

by Parker Hannifin
Flow Control – Swivel Outlet:7045 - compact swivel outlet flow control tube to NPT or BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 7045 12 17 Parker \| 10 \|
Series:	7045 Series
Shape (Orientation):	Multi-Directional
Material(s):	Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Swivel

Product Features:	Glass-reinforced nylon 6.6 body Stainless steel gripping ring Nickel-plated brass adjustment screw Nickel-plated brass locking nut Nickel-plated brass threads Nitrile D-Seal Silicone-Free
Markets:	Factory/Process Automation Life Science Food Processing Water and Beverage Petrochemical
Applications:	Packaging Filling Dispensing Bottling Pneumatic Circuits
Pressure Range	14.5 to 145 psi (1-10 bar)
Temperature Range	32° to 158° F (0° to 70° C)
Compatible Tubing	Semi-Rigid Nylon Polyurethane 95 Durometer Shore A Fluoropolymer


Part Number	ØD	NPT (BSPT mm)	F	F1	G	H (min)	H (max)	H1	H2	L	L1	Oz or Kg
7045 12 17	12 mm	3/8"	23 mm	17 mm	16 mm	43.5 mm	51.5 mm	31 mm	25 mm	37 mm	19.5 mm	.067 Kg
7045 56 11	1/4"	1/8"	19 mm	10 mm	.41"	1.87"	2.09"	.63"	.83"	.93"	.65"	.91 Oz
7045 56 14	1/4"	1/4"	19 mm	14 mm	.43"	1.79"	1.99"	.73"	.83"	1.00"	.89"	.91 Oz
7045 60 14	3/8"	1/4"	23 mm	17 mm	.63"	1.93"	2.20"	1.04"	.98"	1.34"	.97"	2.19 Oz
7045 60 18	3/8"	3/8"	23 mm	17 mm	.63"	1.93"	2.20"	1.04"	.98"	1.34"	.97"	2.29 Oz
