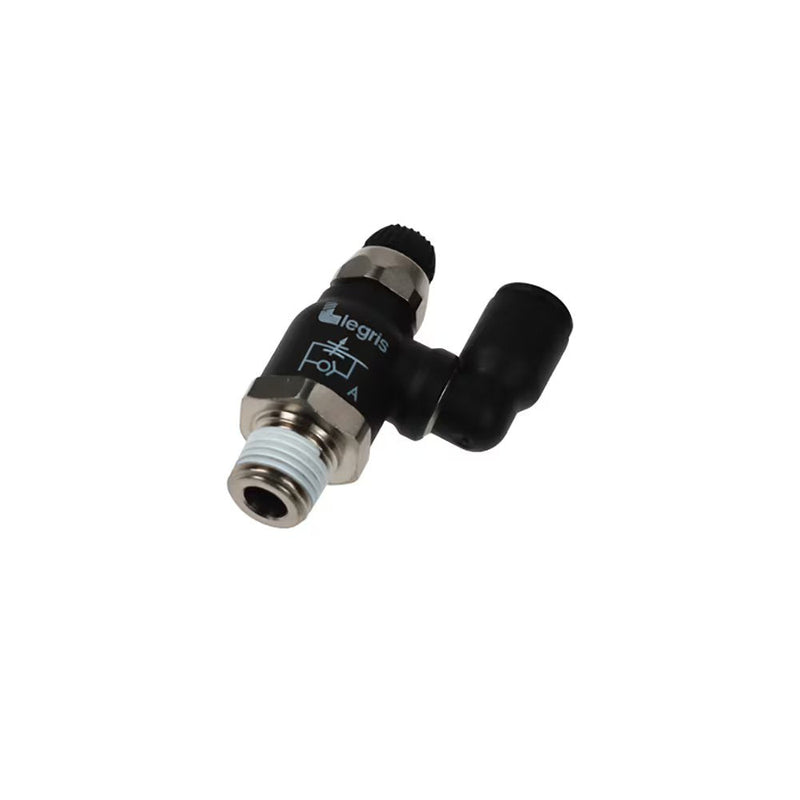

7045 60 14 by Parker | Legris Compact Swivel Outlet Flow Control | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 23 mm Hex | Multi-Directional

7045 60 14 by Parker | Legris Compact Swivel Outlet Flow Control | 3/8" Push-to-Connect x 1/4" Male NPT Thread | 23 mm Hex | Multi-Directional | Pack of 5

Save $150.31 Save $150.31
$375.78
$375.78 - $375.78
$375.78
$225.47
$225.47 - $225.47
$225.47

by Parker Hannifin
Flow Control – Swivel Outlet:7045 - compact swivel outlet flow control tube to NPT or BSPT

Package Quantity: 5 Units

Specifications for Variant SKU: 7045 60 14 Parker | 5 |
Series: 7045 Series
Shape (Orientation): Multi-Directional
Material(s): Glass-Reinforced Nylon, Stainless Steel, Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Swivel
Product Features:
  • Glass-reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D-Seal
  • Silicone-Free
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water and Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range
  • 14.5 to 145 psi (1-10 bar)
Temperature Range
  • 32° to 158° F (0° to 70° C)
Compatible Tubing
  • Semi-Rigid Nylon
  • Polyurethane 95 Durometer Shore A
  • Fluoropolymer
Part Number ØD NPT (BSPT mm) F F1 G H (min) H (max) H1 H2 L L1 Oz or Kg
7045 12 17 12 mm 3/8" 23 mm 17 mm 16 mm 43.5 mm 51.5 mm 31 mm 25 mm 37 mm 19.5 mm .067 Kg
7045 56 11 1/4" 1/8" 19 mm 10 mm .41" 1.87" 2.09" .63" .83" .93" .65" .91 Oz
7045 56 14 1/4" 1/4" 19 mm 14 mm .43" 1.79" 1.99" .73" .83" 1.00" .89" .91 Oz
7045 60 14 3/8" 1/4" 23 mm 17 mm .63" 1.93" 2.20" 1.04" .98" 1.34" .97" 2.19 Oz
7045 60 18 3/8" 3/8" 23 mm 17 mm .63" 1.93" 2.20" 1.04" .98" 1.34" .97" 2.29 Oz
