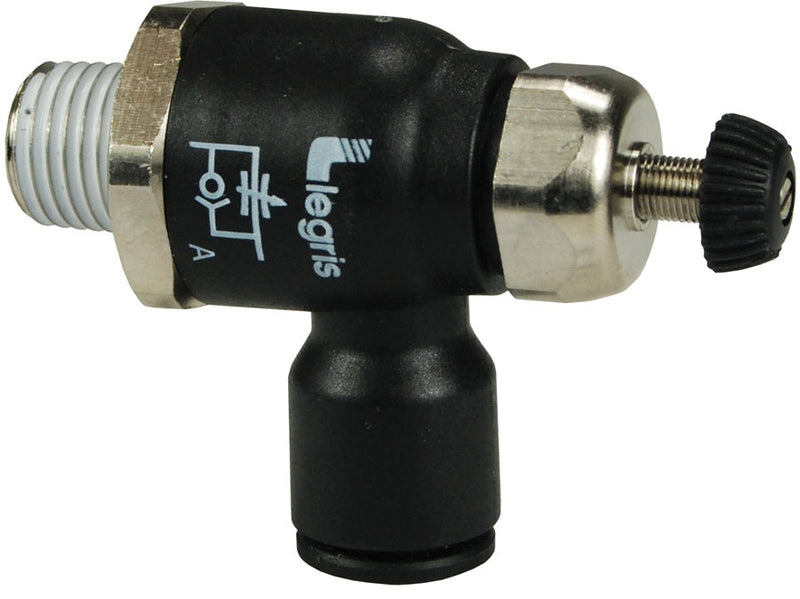

70655614 by Dixon Valve | Legris Push-to-Connect Compact Flow Control Valve | 1/4" Tube OD x 1/4" Male NPT | Nylon

70655614 by Dixon Valve | Legris Push-to-Connect Compact Flow Control Valve | 1/4" Tube OD x 1/4" Male NPT | Nylon

Save $3.24 Save $3.24
$34.64
$34.64 - $34.64
$34.64
$31.40
$31.40 - $31.40
$31.40

Dixon Valve & Coupling
Legris Push-to-Connect Compact Flow Control Valve

Valve controls the speed of a cylinder by regulating air exhaust. Intake air flows freely through the flow control and exhaust air is metered out through a specially designed fine adjustment screw.
Specifications for Variant SKU: 70655614 Dixon
Brand: Legris
Shape (Orientation): 90 Degree
Material(s): Nylon
Features:
  • Push-to-connect
  • Meter out flow control
  • One-piece design
Materials:
  • Body: Glass Reinforced Nylon 6.6
  • Seal: Nitrile
Specifications:
  • Control pressure range: 15 PSI to 145 PSI
  • Temperature range: 32°F to 158°F (0°C to 70°C)
Part Number Tube O.D. Male NPT Size
70650411 5/32" 1/8"
70655611 1/4" 1/8"
70655614 1/4" 1/4"
70656014 3/8" 1/4"
70656018 3/8" 3/8"
