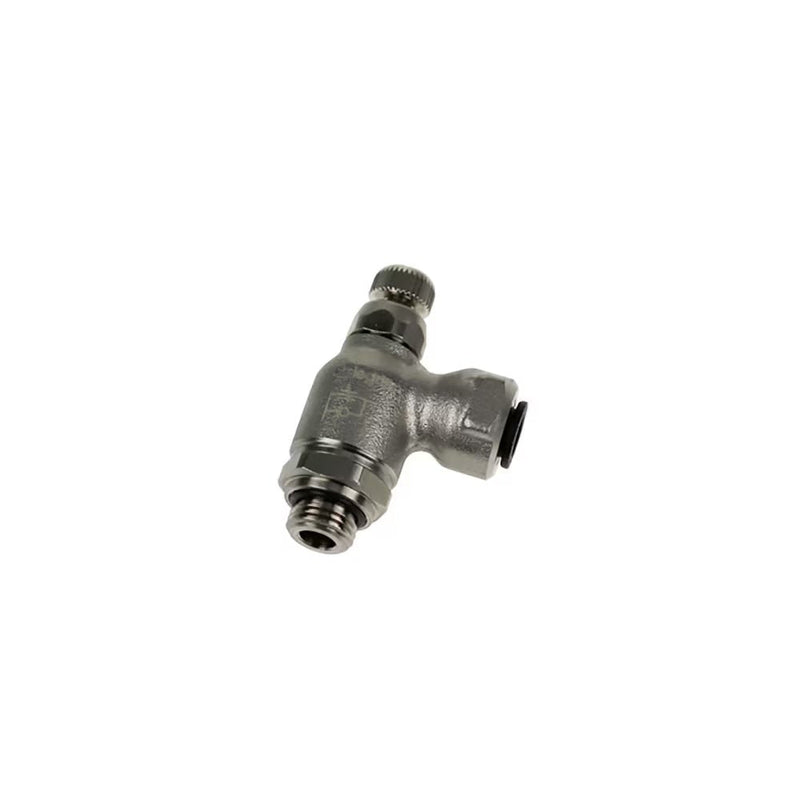

7101 04 10 by Parker | Legris Compact Flow Regulator | 4mm Tube Size x 1/8" Male BSPP Thread | 19mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $131.82

$329.55

$329.55 - $329.55

$329.55

$197.73

$197.73 - $197.73

$197.73

by Parker Hannifin
Flow Control Regulators:7101 Compact Flow Regulator, Supply, Male BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7101 04 10 Parker \| 5 \|
Series:	7101 Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	ØD	C	F	F1	H (max)	H (min)	H1	L	Kg
7101 04 10	4 mm	1/8"	10 mm	19 mm	53 mm	47 mm	23 mm	21 mm	.096 Kg
7101 06 10	6 mm	1/8"	10 mm	19 mm	53 mm	47 mm	23 mm	24.5 mm	.081 Kg
7101 06 13	6 mm	1/4"	10 mm	19 mm	53 mm	47.5 mm	23.5 mm	24.5 mm	.084 Kg
7101 08 10	8 mm	1/8"	14 mm	19 mm	55 mm	50 mm	24.5 mm	29 mm	.097 Kg
7101 08 13	8 mm	1/4"	14 mm	19 mm	56 mm	50 mm	25 mm	29 mm	.101 Kg
7101 08 17	8 mm	3/8"	17 mm	25 mm	62 mm	56 mm	27 mm	30.5 mm	.155 Kg
