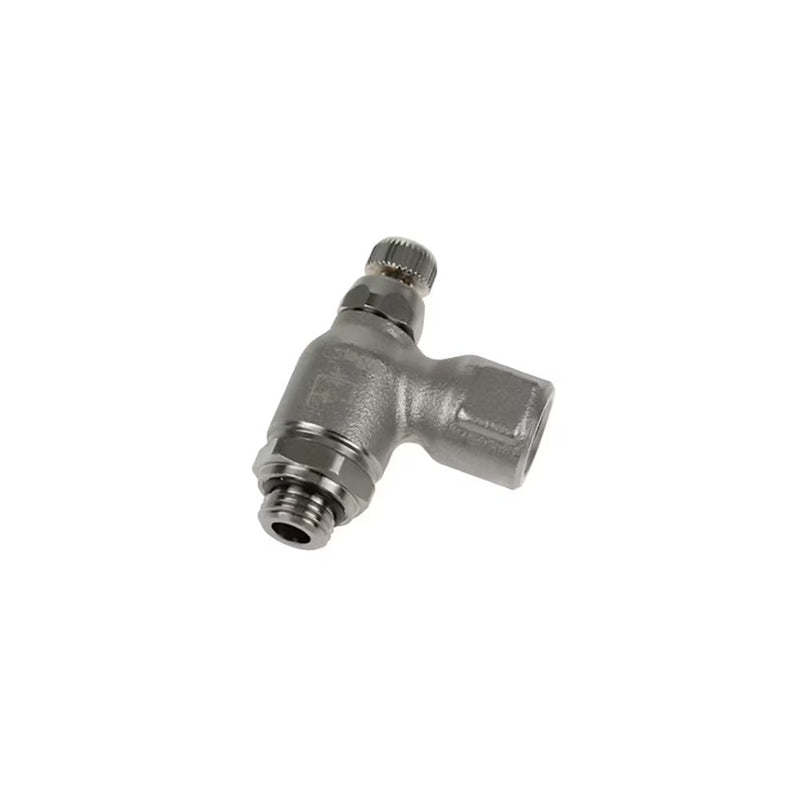

7111 10 10 by Parker | Legris Compact Flow Regulator Supply | 1/8" Male/Female BSPP Thread | 19 mm Hex | 90° Elbow | Nickel-Plated Brass

7111 10 10 by Parker | Legris Compact Flow Regulator Supply | 1/8" Male/Female BSPP Thread | 19mm Hex | 90° Elbow | Nickel-Plated Brass | Pack of 5

Save $30.95 Save $30.95
$258.88
$258.88 - $258.88
$258.88
$227.93
$227.93 - $227.93
$227.93

by Parker Hannifin
Flow Control Regulators:7111 Compact Flow Regulator Supply, Male/Female BSPP Thread

Package Quantity: 5 Units

Specifications for Variant SKU: 7111 10 10 Parker | 5 |
Series: 7111 Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Flow Control
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:

    Productivity:

  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed

    • Accuracy:

  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow

    • Ergonomics:

  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number C F F1 H (max) H (min) H1 L Kg
7111 10 10 1/8" 10 mm 19 mm 52.5 mm 47 mm 23 mm 22.5 mm .079 Kg
7111 13 13 1/4" 14 mm 19 mm 55.5 mm 50.5 mm 25 mm 32 mm .108 Kg
