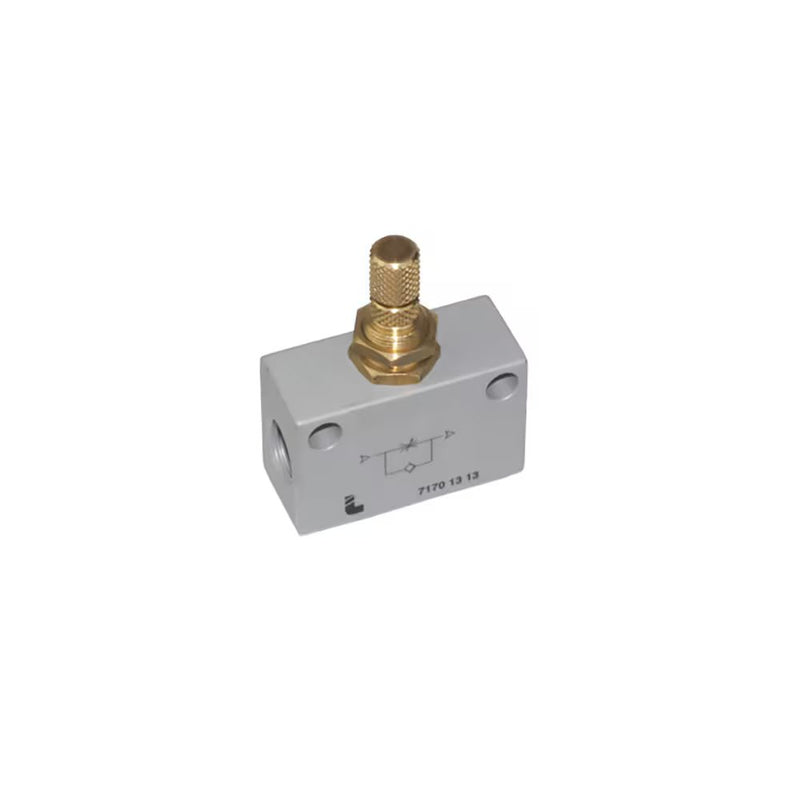

7170 10 10 by Parker | Legris Panel-Mountable In-Line Flow Regulator | 1/8" Female BSPP Thread | Straight | Aluminum | Pack of 10

Save $169.95

$424.88

$424.88 - $424.88

$424.88

$254.93

$254.93 - $254.93

$254.93

by Parker Hannifin
Flow Control Regulators:7170 Panel-Mountable In-Line Flow Regulator, Female BSPP and Metric Thread

Package Quantity: 10 Units

Specifications for Variant SKU: 7170 10 10 Parker \| 10 \|
Series:	7170 Series
Shape (Orientation):	Straight
Material(s):	Aluminum, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Flow Control

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: 1 to 10 bar. Working Temperature: 0°C to +70°C -25°C to +70°C (Metal version)
Advantages:	Productivity: Higher maximum flow than standard regulators Optimal control of the cylinder rod speed Accuracy: Precise adjustment for accurate flow regulation Long-term stability of flow Ergonomics: External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism Can be rotated 360° during assembly
Regulations:	RoHS REACH PED
Component Materials:	Body: Technical polymer or Nickel-plated brass Adjustment screw: Nickel-plated brass and polymer Nut: Nickel-plated brass Seals: NBR Adapter: Nickel-plated brass Gripping: Stainless Steel


Part Number	C	F	H (max)	H (min)	H1	K	L	L1	ØT	Kg
7170 10 10	1/8"	15 mm	56 mm	49 mm	22 mm	18 mm	35 mm	24.7 mm	4.5 mm	.056 Kg
7170 13 13	1/4"	15 mm	64 mm	57 mm	30 mm	20 mm	46 mm	35 mm	6.5 mm	.088 Kg
7170 17 17	3/8"	22 mm	73 mm	62 mm	30 mm	25 mm	50 mm	35 mm	6.5 mm	.154 Kg
7170 21 21	1/2"	22 mm	83 mm	72 mm	40 mm	25 mm	60 mm	44 mm	6.5 mm	.195 Kg
